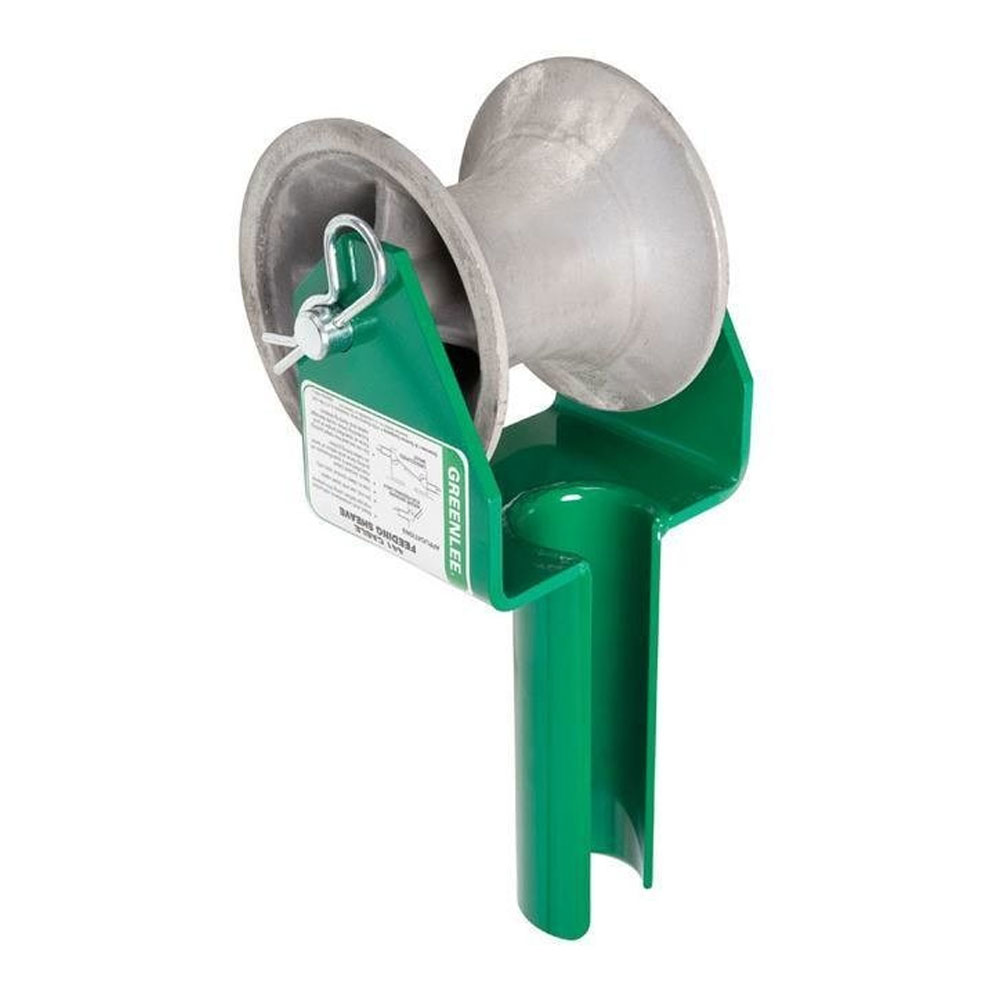

Greenlee 441-3 Feeding Sheave for 3" Conduit

  • $421.61

  • $507.20
Greenlee 441-3 Feeding Sheave for 3" Conduit

Greenlee 441-3 Feeding Sheave for 3" Conduit

  • $507.20
  • $421.61

  • Model: 441-3
  • Availability: In Stock



Greenlee 441-3 Specifications:
  • Weight: 14 lbs. (6.4 kg)
  • Capacity (Angle of Pull) -
  • 15 °: 6050 lbs. (26.9 kN)
  • 30°: 3150 lbs. (14.0 kN)
  • 45°: 2200 lbs. (9.7 kN)
  • 60°: 1800 lbs. (8.0 kN)
  • 75°: 1600 lbs. (7.1 kN)
  • 90°: 1550 lbs. (6.8 kN)
Greenlee 441-3 Features:
  • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
  • 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
  • Split tube for easy removal after cable is installed.
