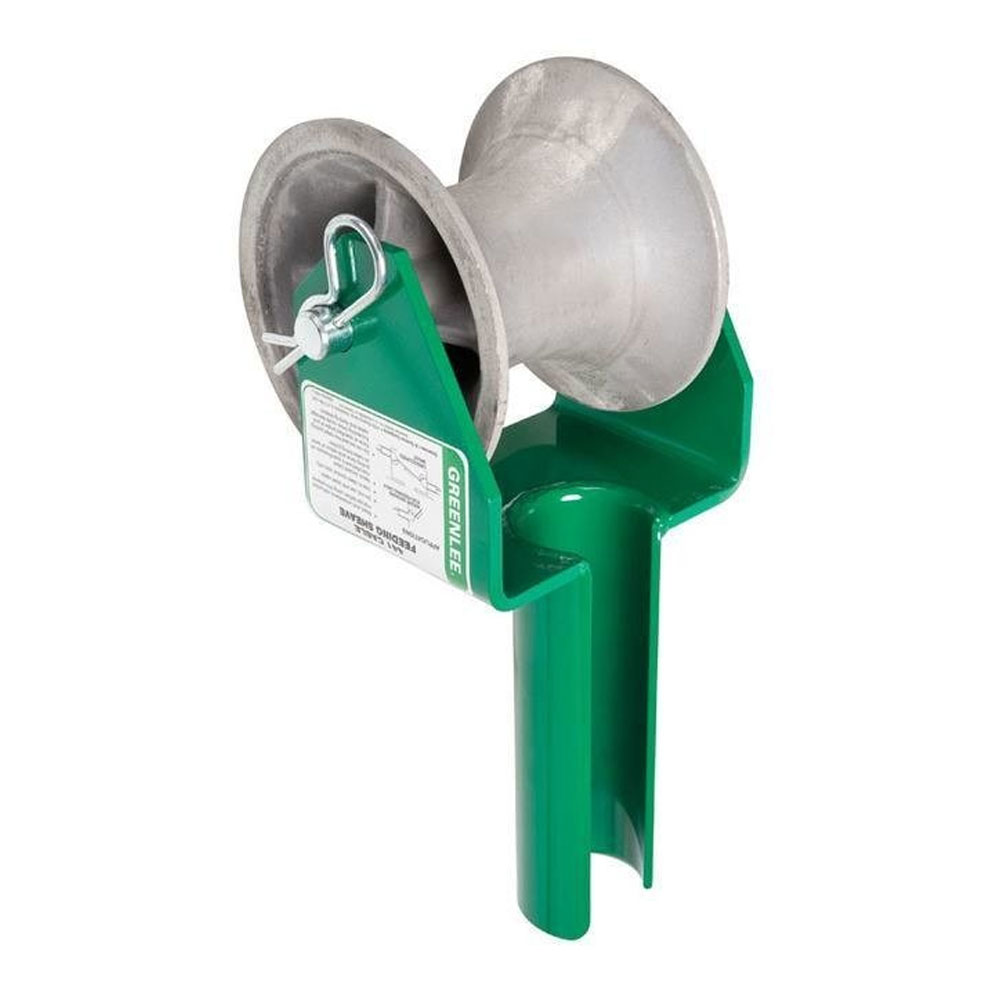

Greenlee 441-4 Feeding Sheave for 4" Conduit

  • $493.96

  • $594.25
Greenlee 441-4 Feeding Sheave for 4" Conduit

Greenlee 441-4 Feeding Sheave for 4" Conduit

  • $594.25
  • $493.96

  • Model: 441-4
  • Availability: In Stock



Greenlee 441-4 Specifications:
  • Weight: 19 lbs. (8.6 kg)
  • Capacity (Angle of Pull) -
  • 15 °: 6500 lbs. (28.9 kN)
  • 30°: 6500 lbs. (28.9 kN)
  • 45°: 5200 lbs. (23.1 kN)
  • 60°: 4200 lbs. (18.6 kN)
  • 75°: 3650 lbs. (16.2 kN)
  • 90°: 3500 lbs. (15.5 kN)

Greenlee 441-4 Features:
  • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
  • 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
  • Split tube for easy removal after cable is installed.
