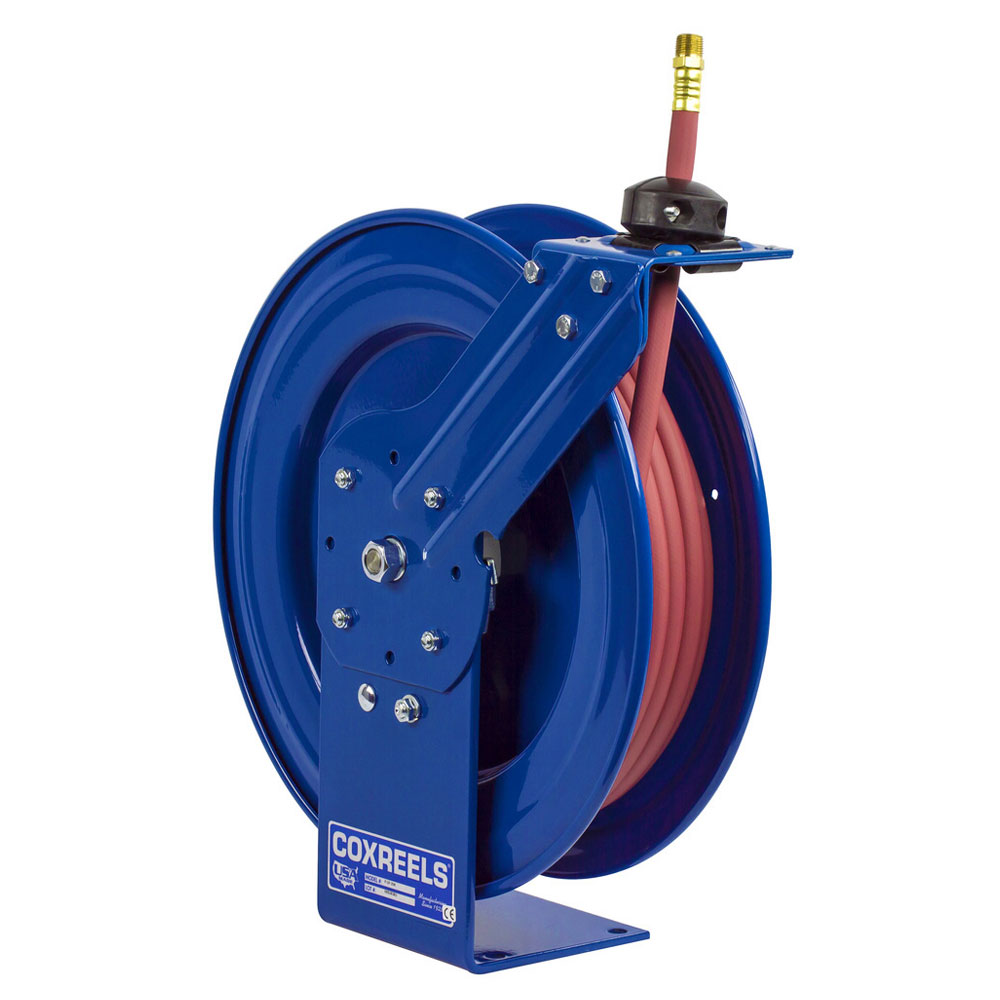

Coxreels P-LP-140 Performance Hose Reel
-
$466.70
- $520.55
Coxreels P-LP-140 Performance Hose Reel
- $520.55
-
$466.70
-
MADE IN THE USA
- Model: P-LP-140
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.
SPRING DRIVEN FEATURES:
- Auto Rewind Easily Wraps, Stores & Protects Hose
- Heavy Gauge 1/4” Steel Base & Support Post
- Factory-Matched Cartridge-Style Spring Motor
- Brass NPT Swivel Inlet Machined From Solid (Zinc Plated Steel On HP Models)
- 1” Solid Steel Axle With 1” Lubricated Precision Bearings
- Guide Arm Adjusts To Wall, Floor & Overhead Positions
- Multi-Position Lock Ratchet Secures Hose At Desired Length
- Non-Corrosive Stainless Steel Spring, Pawl & Zinc Plated Ratchet
COXREELS SIGNATURE FEATURES:
- Professional Grade Heavy Duty Steel Construction
- Durable Proprietary CPC Powder Coat Process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Leading 2-Year Manufacturer’s Limited Warranty
- Made In The U.S.A. Sold & Supported Worldwide
SPECIFICATIONS:
- Hose I.D.: 1/4"
- Hose Length: 40 feet
- PSI: 300
- Low Pressure
- Size Index 3
|
SIZE
INDEX |
A
|
B
|
C
|
D
|
E
|
MOUNT
L-M |
|
1
|
6”
|
14-1⁄2”
|
13-3⁄4”
|
5”
|
6”
|
3”- 5”
|
|
2
|
6-1⁄4”
|
14-1⁄2”
|
13-3⁄4”
|
5”
|
6”
|
3”- 5”
|
|
3
|
6-1⁄8”
|
18-1⁄4”
|
17-1⁄4”
|
6”
|
6”
|
4”- 5”
|
|
4
|
7”
|
18-1⁄4”
|
17-1⁄4”
|
6”
|
6”
|
4”- 5”
|
