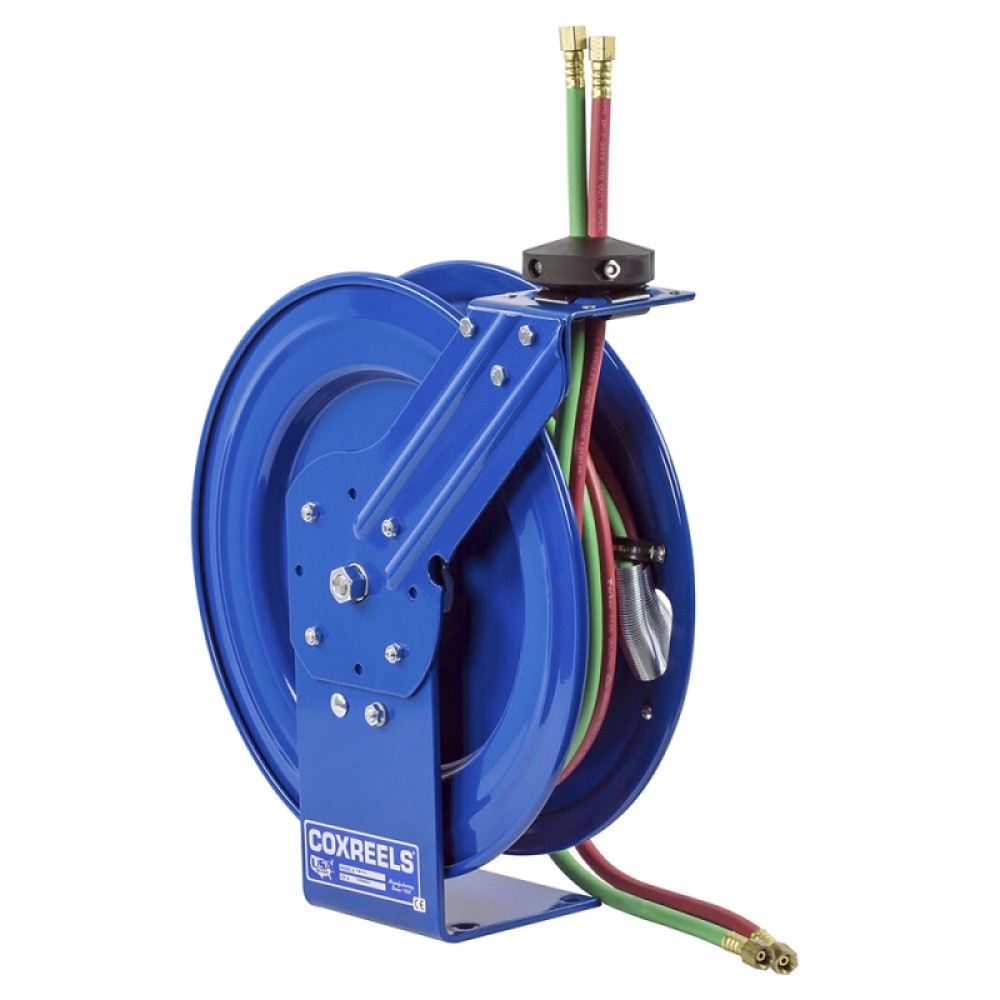

Coxreels SHW-N-175 Spring Driven Welding Hose Reel

$570.84
$738.00

Coxreels SHW-N-175 Spring Driven Welding Hose Reel

0 reviews / Write a review

$738.00
$570.84

MADE IN THE USA
Model: SHW-N-175
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

COXREELS® SHW Series spring driven "Welding" hose reels is the ideal solution for managing bulky twin line welding hose The SHW Series has a larger chassis and frame than P-W Series to accommodate longer lengths of welding hose and Coxreels’ original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity.

SWIVEL

External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
Swivel lock bracket ensures maximum safety
Swivel Seals: VITON®

DESIGN & STRUCTURE

Designed for Oxy-Acetylene or "T" grade welding hose
Single pedestal reel with space saving design facilitates workplace organization
Guide arm adjusts to wall, floor, vehicle & overhead positions
Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
1" solid steel axle & lubricated precision bearings for smooth rotation
Coxreels' exclusive Super Hub™ dual axle support system on models with size index #2 & #3

RETRACTION

Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl & zinc plated ratchet
Multi-position non-sparking lock ratchet mechanism secures hose at desired length

SIGNATURE FEATURES

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION
