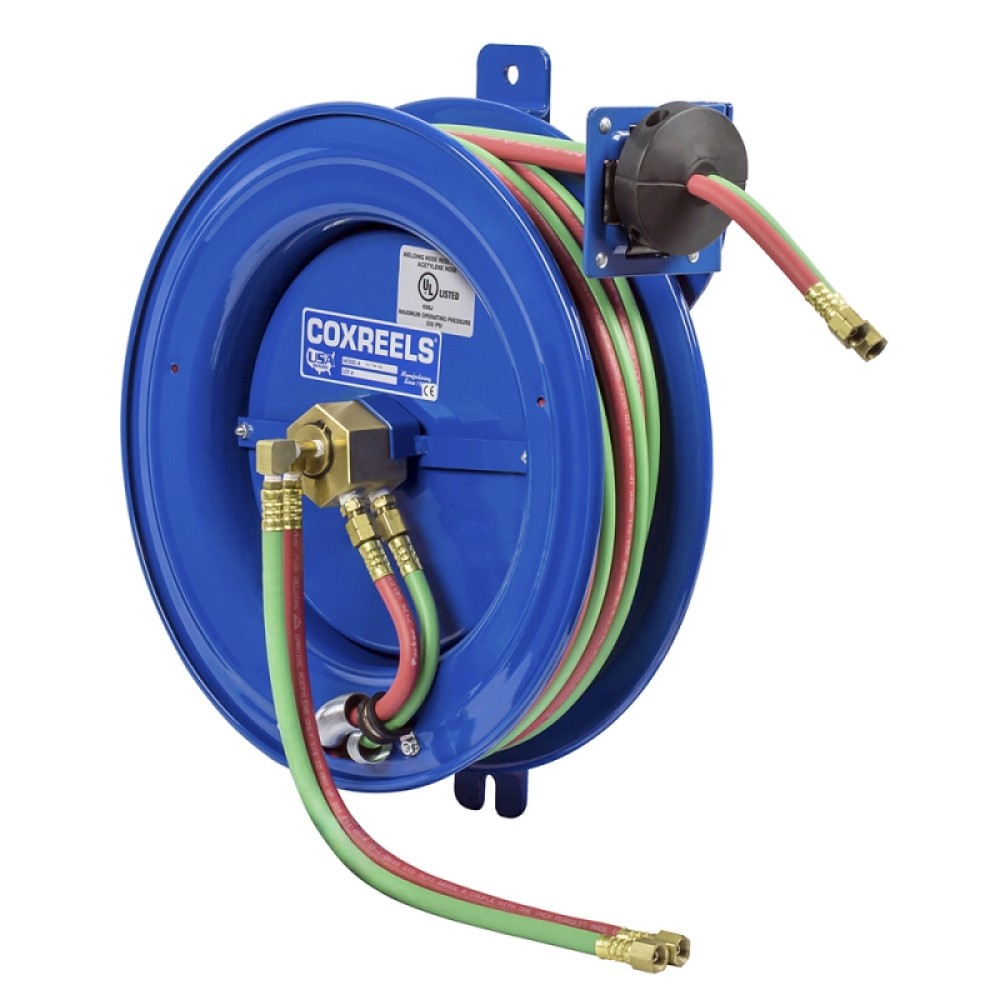

Coxreels SG19WT-175 Side Mount Welding Hose Reel With Guide Arm

$742.56
$960.00

Coxreels SG19WT-175 Side Mount Welding Hose Reel With Guide Arm

0 reviews / Write a review

$960.00
$742.56

MADE IN THE USA
Model: SG19WT-175
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

Coxreels® SGW Series expand the capabilities of the "Side Mount" spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SGW Series (for oxy-acetylene and T Grade gas welding hose) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½" wrench.

SWIVEL

External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
Swivel Seals: VITON®

DESIGN & STRUCTURE

Designed for Oxy-Acetylene or "T" grade welding hose
Side mount design for vertical flat surface, cabinet or enclosed space mounts
Adjustable 6 position guide arm & roller assembly provide maximum hose control
2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
Solid one piece, 3/16" steel arm base for maximum stability
1" solid steel axle & lubricated precision bearings for smooth rotation

RETRACTION

Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl & zinc plated ratchet
Multi-position non-sparking lock ratchet mechanism secures hose at desired length.
Non-locking, less ratchet option available (add suffix –BXC)

SIGNATURE FEATURES

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION

SPECIFICATIONS
