Coxreels 1195-1728-AB Large Capacity Hose Reel

  • $2,021.16

  • $2,613.00
Coxreels 1195-1728-AB Large Capacity Hose Reel

Coxreels 1195-1728-AB Large Capacity Hose Reel

  • $2,613.00
  • $2,021.16

  • MADE IN THE USA
  • Model: 1195-1728-AB
  • Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

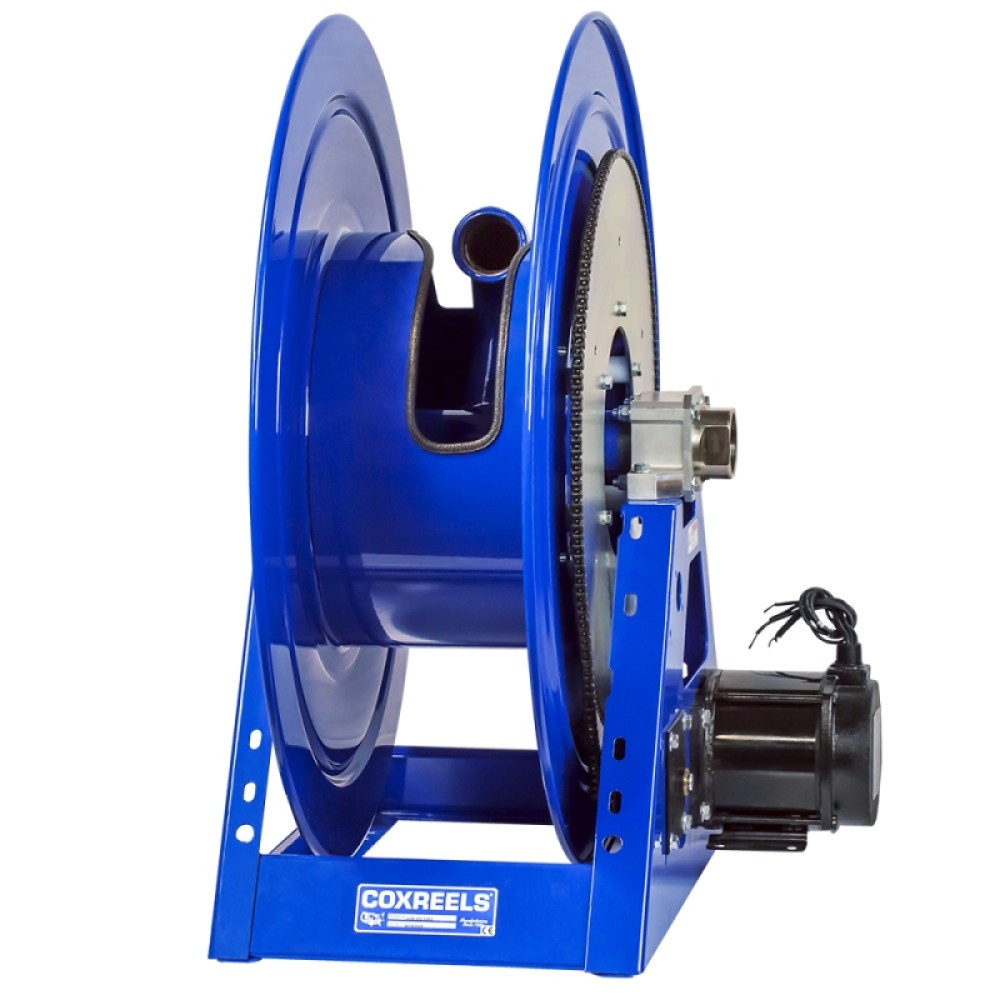

COXREELS® 1195 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. COXREELS® exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
POSSIBLE FIELDS OF APPLICATION
  • High Volume Delivery
  • Bulk Liquid Handling
  • Water Trucks
  • Mining operations
  • Construction Sites
  • Farming
  • Chemical Fluid Transfer
  • Aviation Refueling
  • Fuel Trucks
SWIVEL
  • External fluid path with electroless nickel plated steel 90° full-flow NPT swivel inlet
  • Swivel Seals: VITON®
DESIGN & STRUCTURE
  • All welded steel "A" frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Robust lubricated horizontal surface mount bearings for easy rotation
  • Adaptor for Victaulic connections available, consult factory
  • Adjustable tension brake to prevent "free-wheeling" during operation
RETRACTION
  • Reliable chain & sprocket drive
  • See Motor Options below
SPECIFICATIONS:
  • Hose Capacity  60'
  • I.D. 2"
  • O.D. 2-9/16"
  • PSI 600
  • AIR - #6 GAST / COMP. AIR MOTOR
  • This Item Comes Without a Hose
***Please Contact A WYLACO Sales Representative For Additional Motor Options***
