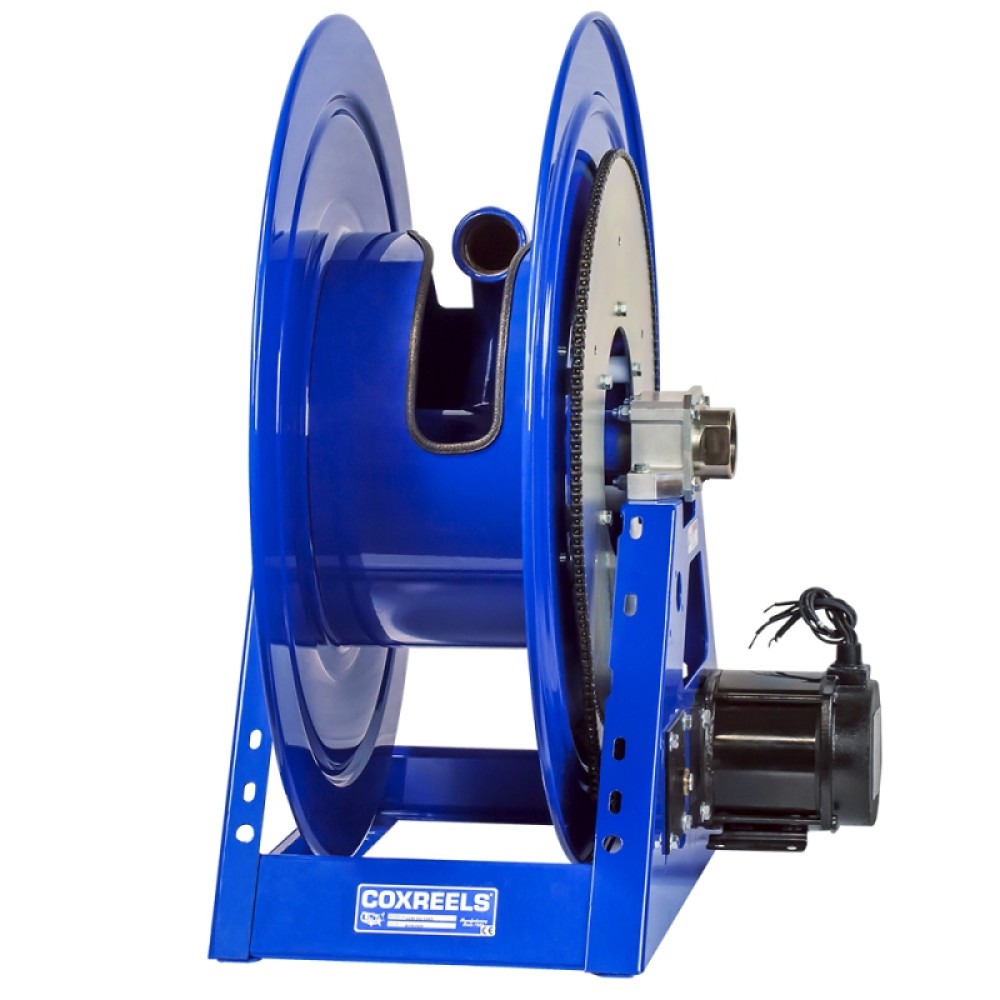

Coxreels 1195-2032-AB Large Capacity Hose Reel
-
$3,465.80
- $3,865.70
Coxreels 1195-2032-AB Large Capacity Hose Reel
- $3,865.70
-
$3,465.80
-
MADE IN THE USA
- Model: 1195-2032-AB
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.
COXREELS® 1195 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. COXREELS® exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.
POSSIBLE FIELDS OF APPLICATION
- High Volume Delivery
- Bulk Liquid Handling
- Water Trucks
- Mining operations
- Construction Sites
- Farming
- Chemical Fluid Transfer
- Aviation Refueling
- Fuel Trucks
- External fluid path with electroless nickel plated steel 90° full-flow NPT swivel inlet
- Swivel Seals: VITON®
- All welded steel "A" frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- Robust lubricated horizontal surface mount bearings for easy rotation
- Adaptor for Victaulic connections available, consult factory
- Adjustable tension brake to prevent "free-wheeling" during operation
- Reliable chain & sprocket drive
- See Motor Options below
- Hose Capacity 115'
- I.D. 2"
- O.D. 2-9/16"
- PSI 600
- AIR - #6 GAST / COMP. AIR MOTOR
- This Item Comes Without a Hose
