Coxreels 1195-2428-AB Large Capacity Hose Reel
-
$2,021.16
- $2,613.00
Coxreels 1195-2428-AB Large Capacity Hose Reel
- $2,613.00
-
$2,021.16
-
MADE IN THE USA
- Model: 1195-2428-AB
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.

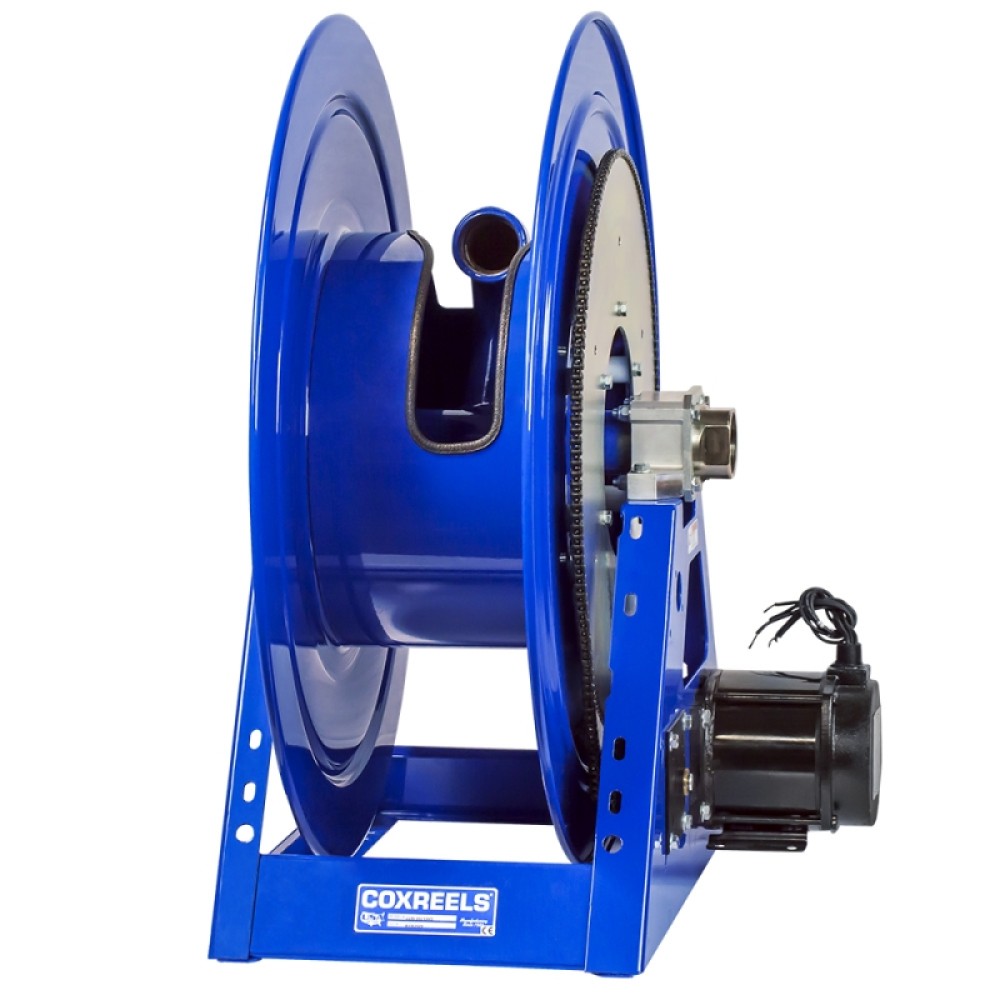

COXREELS® 1195 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. COXREELS® exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications. **Does not come with a hose**
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Durable proprietary CPC™ powder coat finish
- CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
- Industry leading 2 year manufacturer's limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- High Volume Delivery
- Bulk Liquid Handling
- Water Trucks
- Mining operations
- Construction Sites
- Farming
- Chemical Fluid Transfer
- Aviation Refueling
- Fuel Trucks
- External fluid path with electroless nickel plated steel 90° full-flow NPT swivel inlet
- Swivel Seals: VITON®
- All welded steel "A" frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- Robust lubricated horizontal surface mount bearings for easy rotation
- Adaptor for Victaulic connections available, consult factory
- Adjustable tension brake to prevent "free-wheeling" during operation
- Reliable chain & sprocket drive
- See Motor Options below
- Hose Capacity 90'
- I.D. 2"
- O.D. 2-9/16"
- PSI 600
- AIR - #6 GAST / COMP. AIR MOTOR
- This Item Comes Without a Hose
