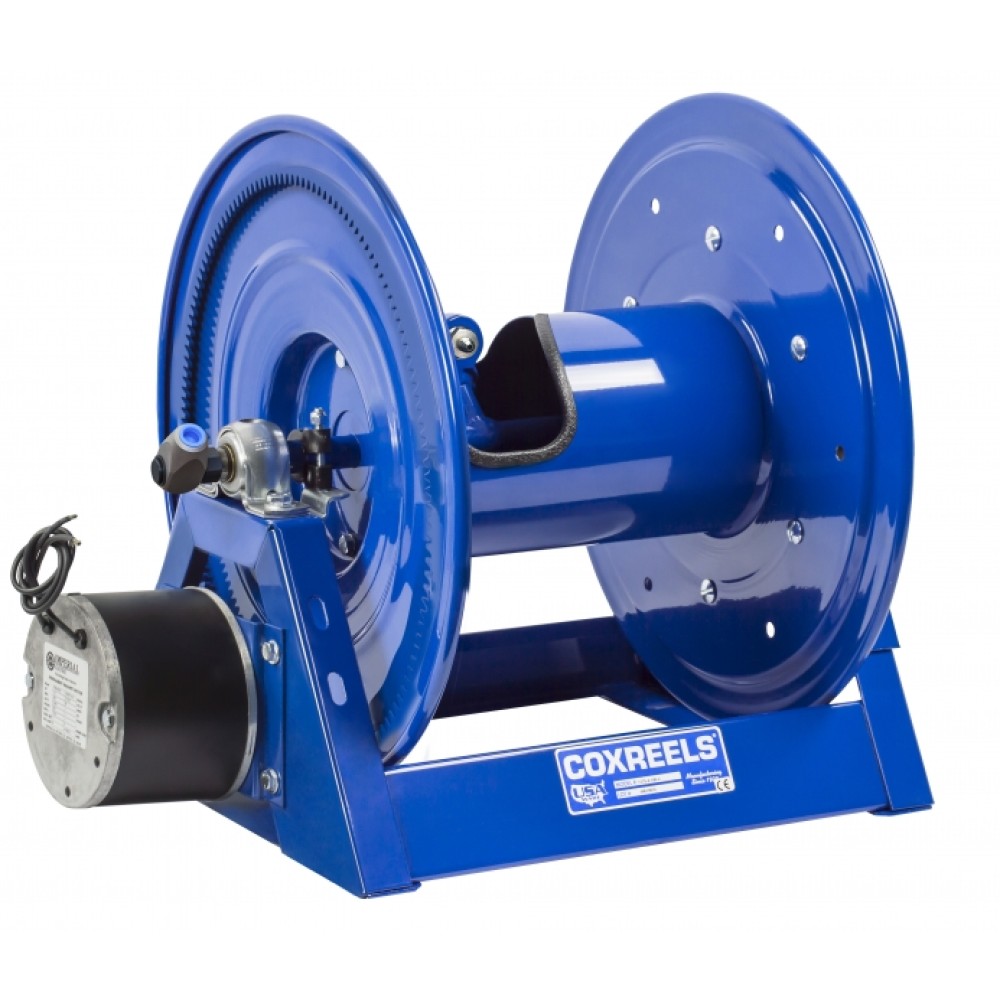

Coxreels 1275HPL-4-12-A 1275HP Series Dual Hydraulic Hose Reel

$1,903.20
$2,122.80

Coxreels 1275HPL-4-12-A 1275HP Series Dual Hydraulic Hose Reel

0 reviews / Write a review

$2,122.80
$1,903.20

MADE IN THE USA
Model: 1275HPL-4-12-A
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

***This Item Comes Without A Hose***
COXREELS® MPD, TDMP and 1275HP Series "Dual Hydraulic" hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. Choose between spring driven retraction at 3,000 PSI to 50 feet and hand crank or motorized models at 10,000 PSI to 200 feet.

SIGNATURE FEATURES

Designed for dual hydraulic emergency rescue systems & other high pressure hydraulic tools.
Two low profile outlet risers & open drum slot design for flat smooth hose wrap (must specify the type of outlets, see outlet options).
Sturdy all welded steel "A" frame, not bolted to strenghthen the reel structure.
Permanently lubricated self-aligning pillow block bearingss for trouble-free & smooth rotation.

POSSIBLE FIELDS OF APPLICATION

Service/Mechanic Trucks
Garage Setting
Hydraulic Rescue Tools
Fire Rescue
Emergency Situations
Mining, Construction & Railroad Operations
Cranes

SWIVEL

External fluid path with dual port melanized 90° full-flow NPT swivel inlet
Swivel Seals: Teflon
One-sided supply/return hookup

DESIGN & STRUCTURE

Sturdy dual pedestal design with Coxreels' exclusive Super Hub™ dual axle support system
Guide arm adjusts to wall, floor, vehicle & overhead positions
Solid one piece, heavy gauge 1/4" steel base & support posts for maximum strength

RETRACTION
