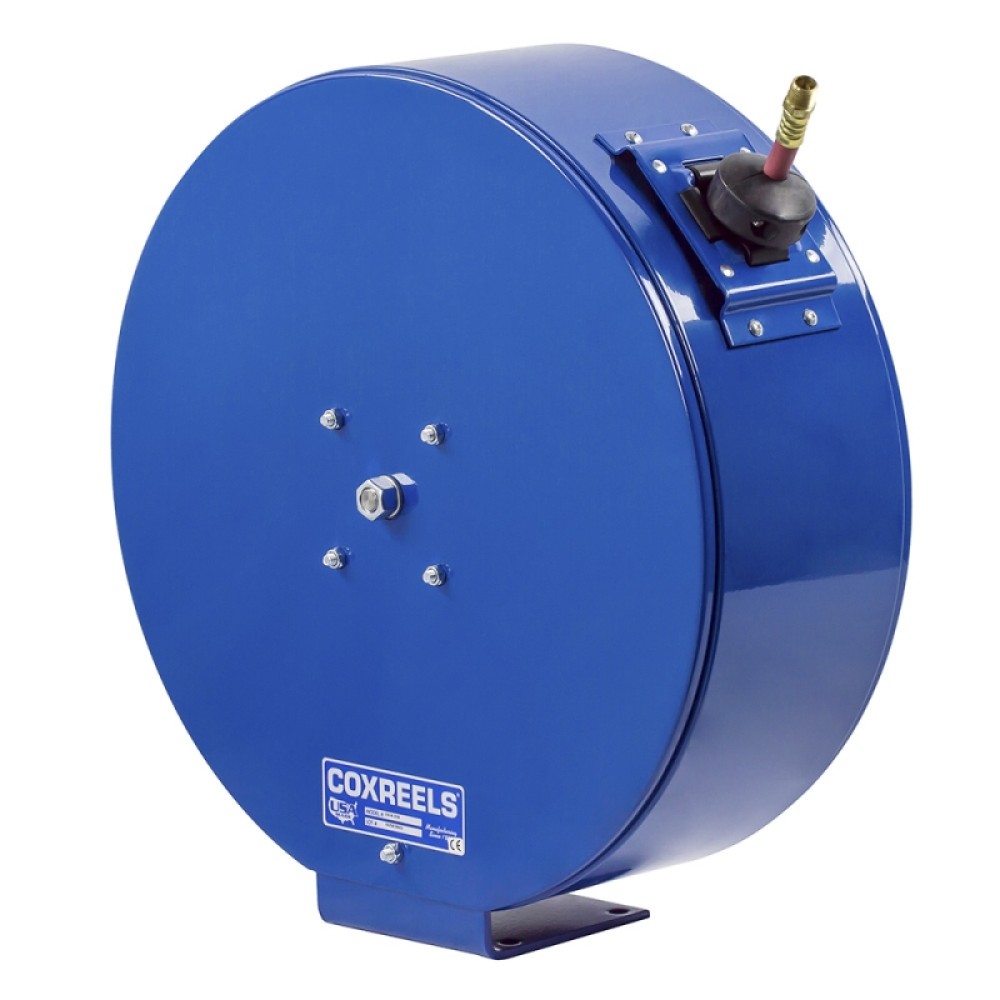

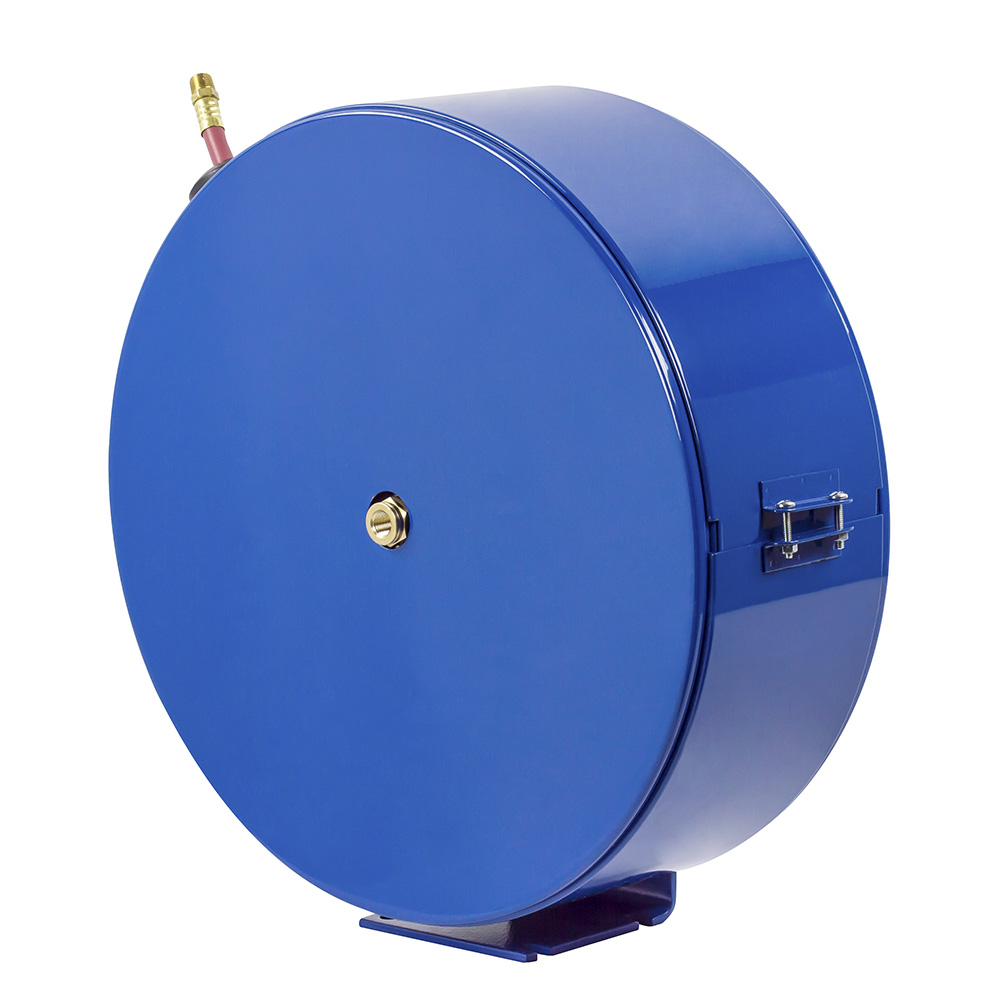

Coxreels EZ-EN-325 EN Series Hose Reel

  • $456.37

  • $590.00
Coxreels EZ-EN-325 EN Series Hose Reel

Coxreels EZ-EN-325 EN Series Hose Reel

  • $590.00
  • $456.37

  • MADE IN THE USA
  • Model: EZ-EN-325
  • Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.

EN Series "Enclosed" spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.

SIGNATURE FEATURES
  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
POSSIBLE FIELDS OF APPLICATION
  • Air/Water Services
  • Pneumatic Tools
  • Lubrication
  • Chemical Fluid Transfer
  • General Industrial
  • Restaurants & Commercial Kitchens
  • Grocery Stores
  • Food & Chemical Plants
SWIVEL
  • Machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE
DESIGN & STRUCTURE
  • Sturdy enclosed reel for aesthetic purposes & greater hose protection
  • Models with size index #2 feature Coxreels' exclusive Super Hub™ dual axle support system
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • Heavy gauge steel 3-piece casing with adjustable hose roller guide
RETRACTION
  • Controlled retraction speed up to 80% slower on EZ-Coil® models
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length
​SPECIFICATIONS:
  • Hose I.D.: 3/8"
  • Hose O.D. 5/8"
  • Hose Length: 25 feet
  • PSI: 300
  • Low Pressure
