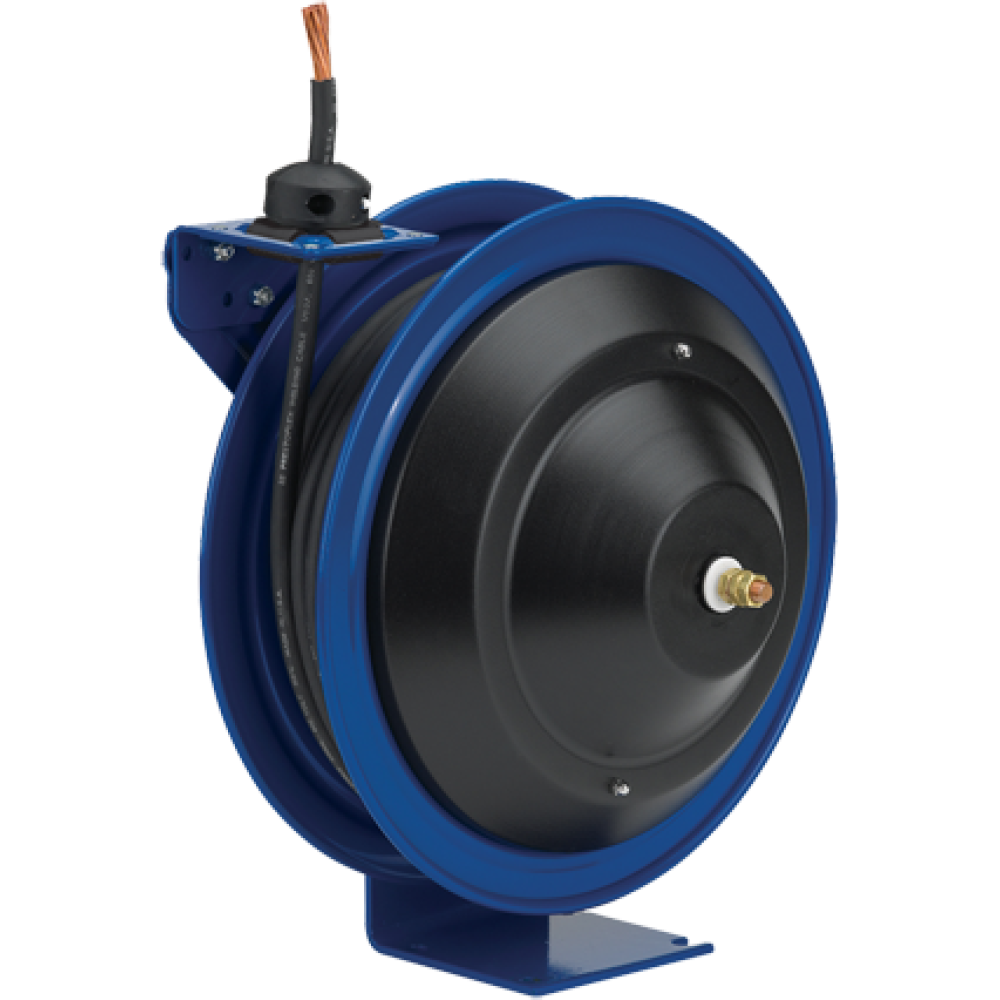

Coxreels P-WC13-3502 Welding Cable Reel

$1,264.90
$1,410.85

Coxreels P-WC13-3502 Welding Cable Reel

0 reviews / Write a review

$1,410.85
$1,264.90

MADE IN THE USA
Model: P-WC13-3502
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

P-WC Series spring driven "Welding Cable" reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.

SWIVEL

External, easily accessible heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
Electrical current runs through a 450 AMP rated slip ring

DESIGN & STRUCTURE

Designed for electrode & grounding lead applications (each lead requires an individual reel)
Single pedestal reel with space saving design facilitates workplace organization
Welding cable clamp available (Sold Separately)
Guide arm adjusts to wall, floor, vehicle & overhead positions
Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
1" solid steel axle & lubricated precision bearings for smooth rotation

RETRACTION

Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl & zinc plated ratchet
Multi-position lock ratchet mechanism secures cable at desired length

SIGNATURE FEATURES

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION
