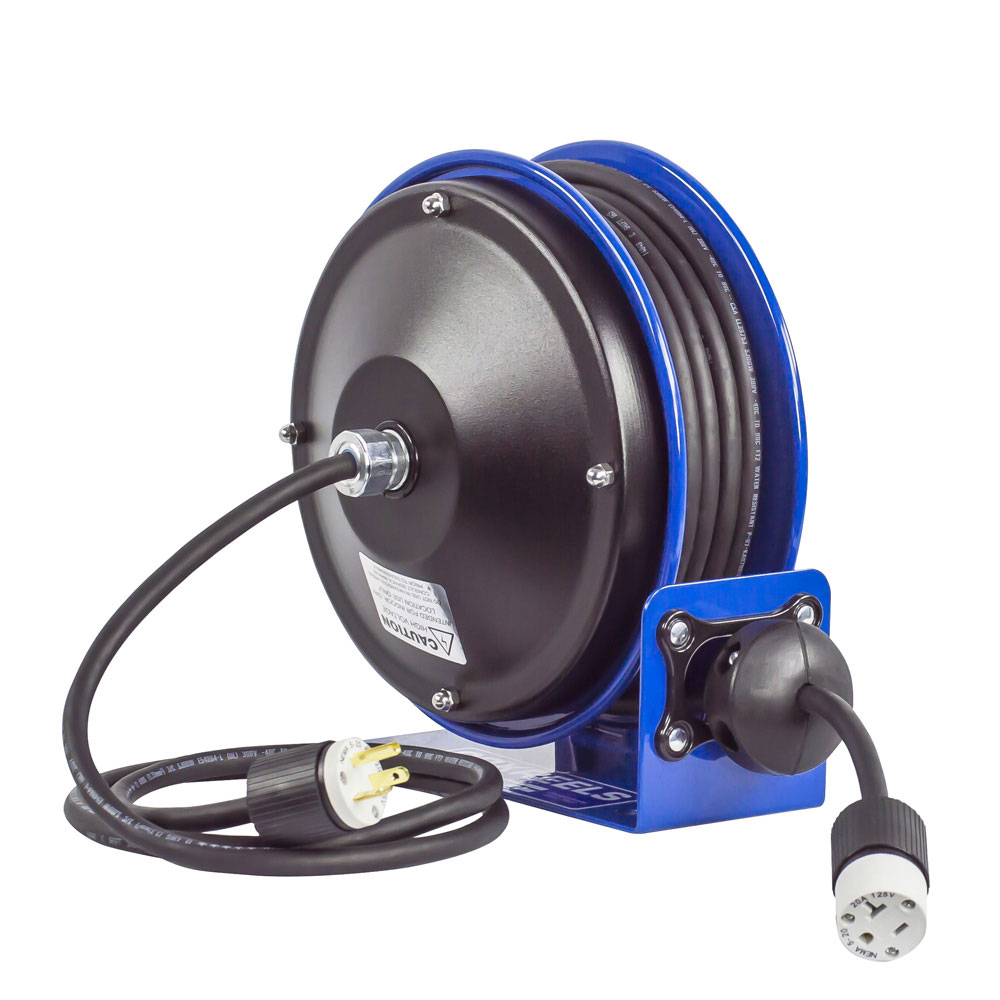

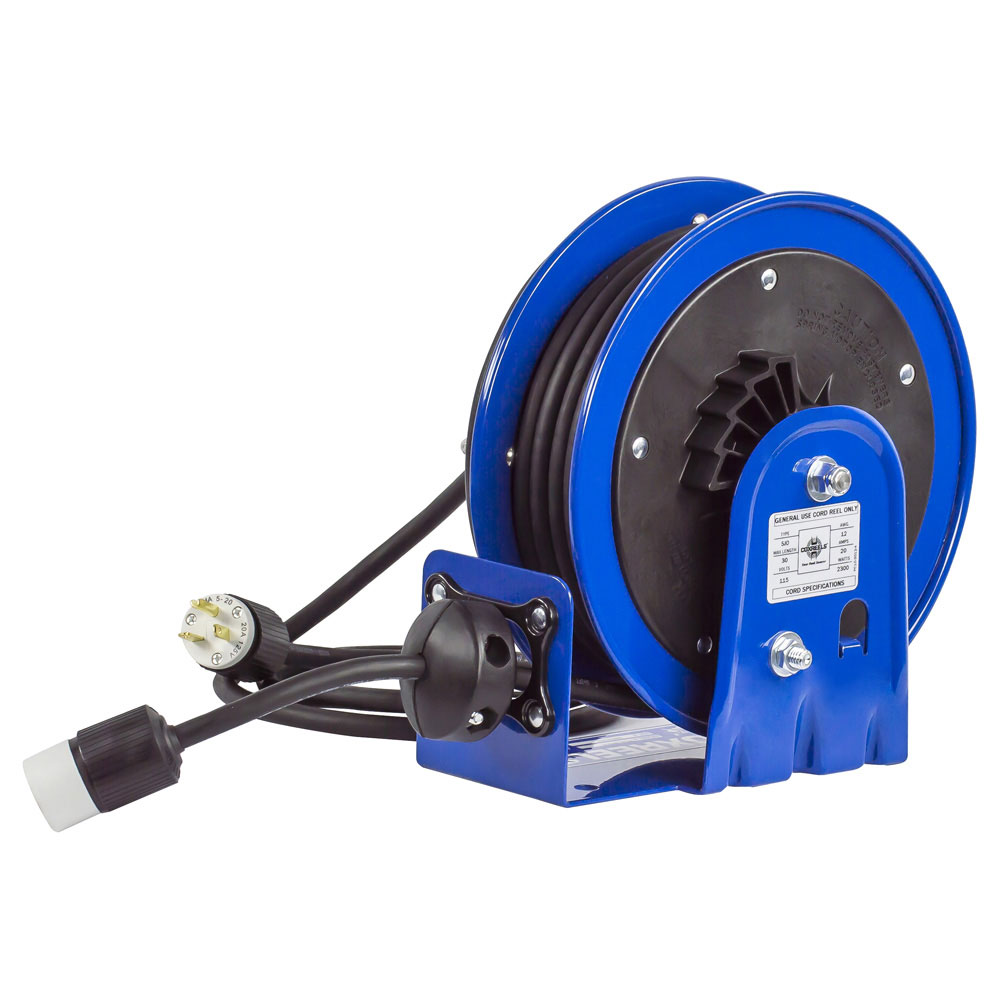

Coxreels PC10-3016-E Compact Power Cord Reel

$612.30
$682.95

Coxreels PC10-3016-E Compact Power Cord Reel

0 reviews / Write a review

$682.95
$612.30

MADE IN THE USA
Model: PC10-3016-E
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

PC10 Series Power-Cord Series is a unique compact addition to our original line of power cord and light reels. This ground-breaking design sets a new bar as the ideal cord management solution capable of fulfilling any commercial or industrial application where space is limited. Modeled after the LG "Little Giant" Series, this Series is equipped with a continuous radius grommet style power cord guide and a unique C-PEP™ Composite hub featuring excellent chemical resistance and additional strength at cold temperatures.

SIGNATURE FEATURES:

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION:

SWIVEL:

External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
Electrical current runs through a 25AMP / 600V rated slip ring
Include 5' lead cable & grounding plug (except on less cord models)

DESIGN & STRUCTURE:

Selection of electrical accessories
Compact & lightweight spring driven cord reel save space & facilitate workplace organization
CoxComposite™ grommet with continuous radius design that does not pinch or catch the cord during operation
Solid one piece, 12GA steel base & support post for maximum stability
½" solid steel axle & lubricated precision bearings for smooth rotation

RETRACTION:

Enclosed factory tuned & matched cartridge-style spring motor
Non-corrosive CoxComposite™ ratchet hub with self lubricating bronze bearings secures cord at desired length

SPECIFICATIONS:
