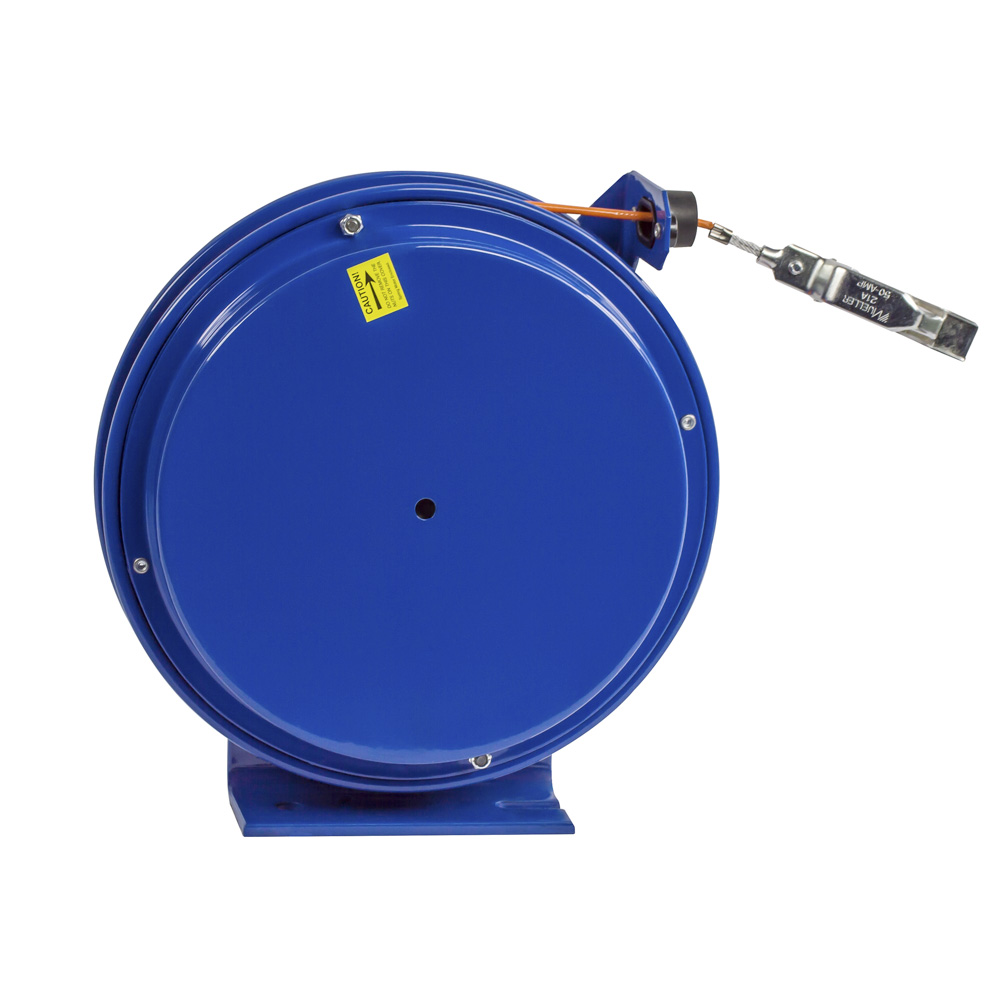

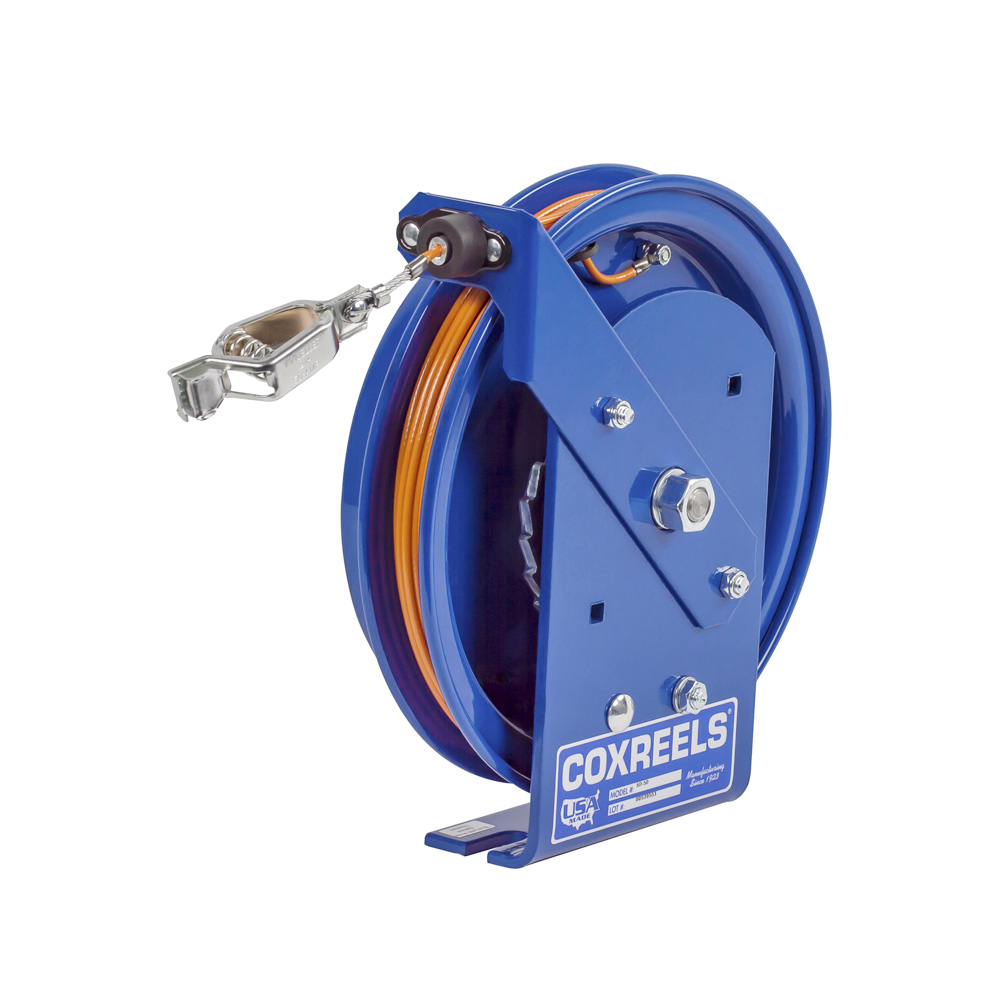

Coxreels SDL-50 Static Discharge Cable Reel
-
$330.20
- $368.30
Coxreels SDL-50 Static Discharge Cable Reel
- $368.30
-
$330.20
-
MADE IN THE USA
- Model: SDL-50
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.
***This Item Comes Without A Cable***
SD and SDH Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.
SIGNATURE FEATURES
• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat finish
• CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
• Industry leading 2 year manufacturer's limited warranty
• Made in the U.S.A. – Sold & Supported Worldwide
POSSIBLE FIELDS OF APPLICATION
• Fuel/Service Trucks
• Fuel Storage & Dispensing Systems
• Ground Support
• Aviation Static Grounding
• Aviation Refueling
• Vehicle Refueling
• Marine/Ship Refueling/Offshore
• Oil Refinery
SWIVEL
• Available with 7 strand x 7 wire galvanized steel or stainless steel cable
• High visibility orange vinyl cable cover
• Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)
DESIGN & STRUCTURE
• Commonly paired with fuel reels & used in combustible environment for grounding purposes
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Solid one piece, heavy gauge 1/4" steel base for maximum stability
• 1" solid steel axle and lubricated precision bearings for smooth rotation
• Bottom of base is un-powder coated to ground reel
RETRACTION
• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl and zinc plated ratchet
• Multi-position non-sparking lock ratchet mechanism secures cable at desired length
SPECIFICATIONS:
This Item Comes Without a Cable, But Supports The Following Cable Dimensions and Lengths:
• Cord Length 50'
• O.D. 5/32"
• No Cable Included
***This Item Comes Without A Cable***
SD and SDH Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.
SIGNATURE FEATURES
• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat finish
• CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
• Industry leading 2 year manufacturer's limited warranty
• Made in the U.S.A. – Sold & Supported Worldwide
POSSIBLE FIELDS OF APPLICATION
• Fuel/Service Trucks
• Fuel Storage & Dispensing Systems
• Ground Support
• Aviation Static Grounding
• Aviation Refueling
• Vehicle Refueling
• Marine/Ship Refueling/Offshore
• Oil Refinery
SWIVEL
• Available with 7 strand x 7 wire galvanized steel or stainless steel cable
• High visibility orange vinyl cable cover
• Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)
DESIGN & STRUCTURE
• Commonly paired with fuel reels & used in combustible environment for grounding purposes
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Solid one piece, heavy gauge 1/4" steel base for maximum stability
• 1" solid steel axle and lubricated precision bearings for smooth rotation
• Bottom of base is un-powder coated to ground reel
RETRACTION
• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl and zinc plated ratchet
• Multi-position non-sparking lock ratchet mechanism secures cable at desired length
SPECIFICATIONS:
This Item Comes Without a Cable, But Supports The Following Cable Dimensions and Lengths:
• Cord Length 50'
• O.D. 5/32"
• No Cable Included
