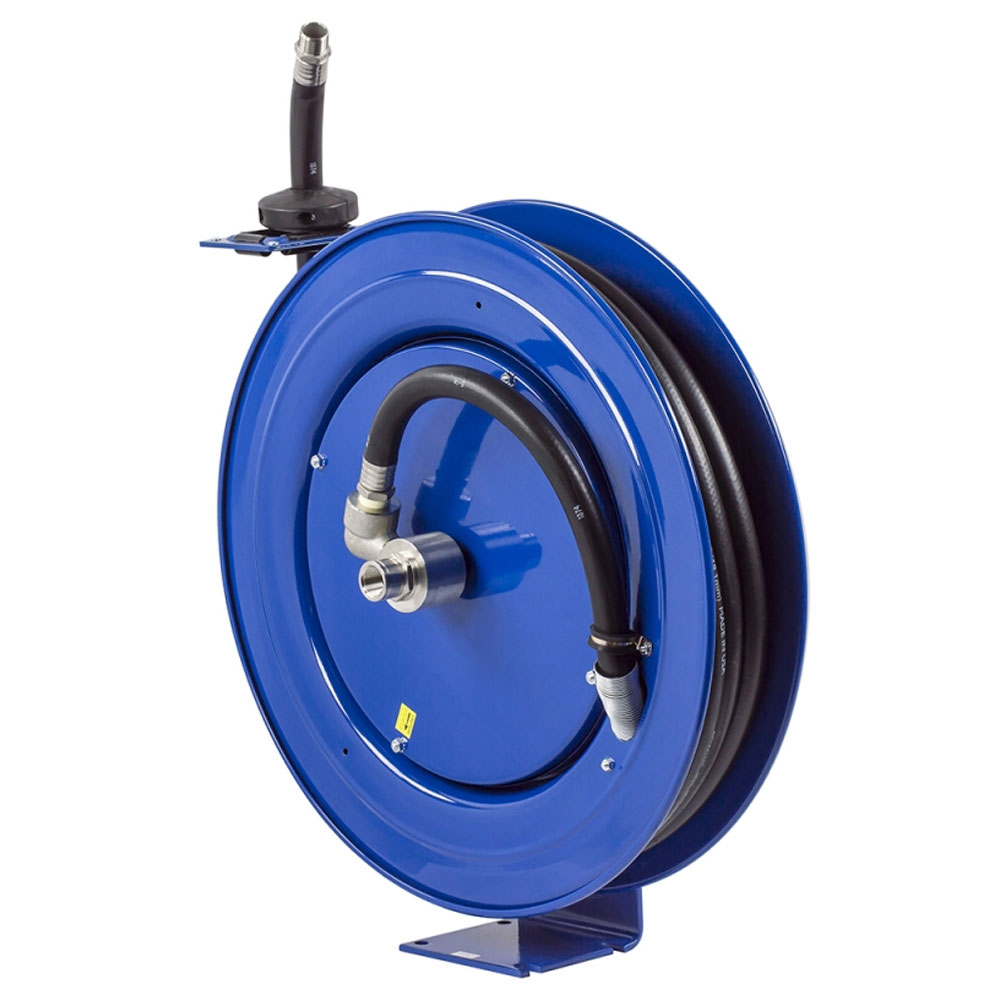

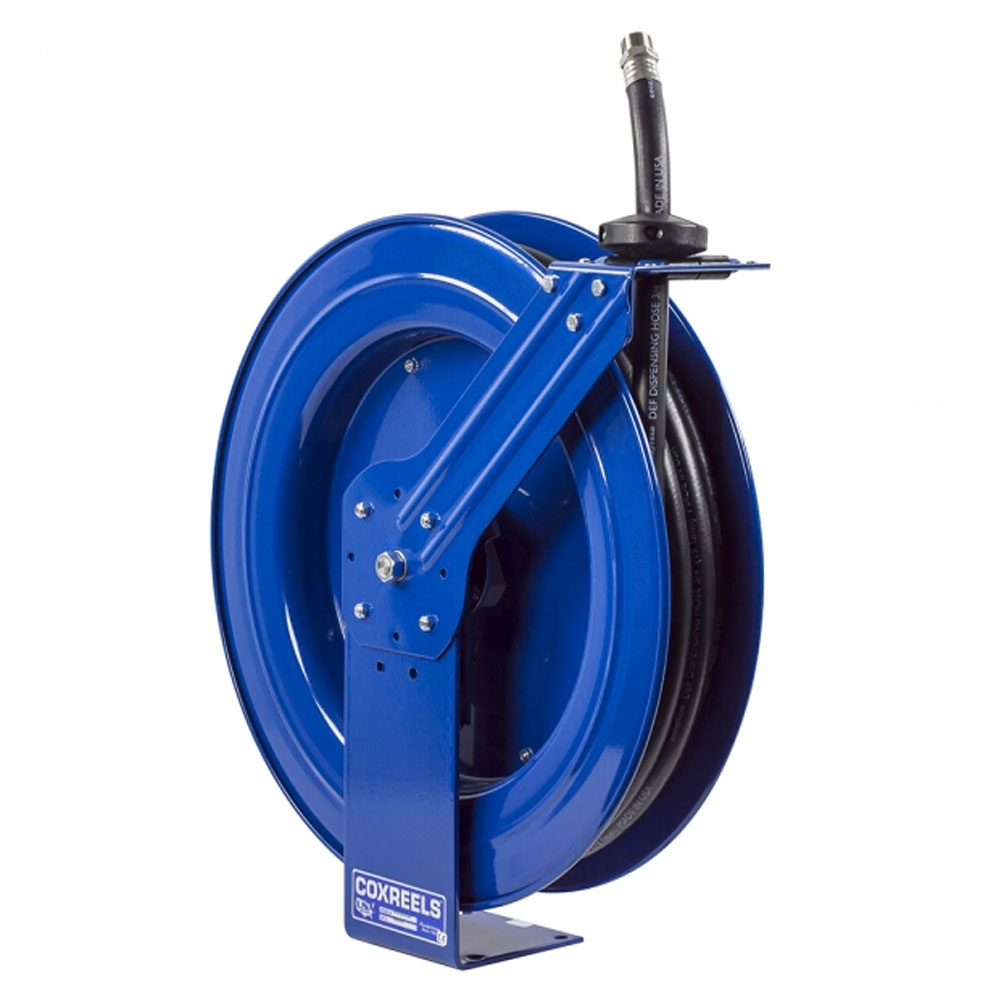

Coxreels SHL-N-450-BBX Spring Driven Fuel Hose Reel
-
$411.50
- $532.00
Coxreels SHL-N-450-BBX Spring Driven Fuel Hose Reel
- $532.00
-
$411.50
-
MADE IN THE USA
- Model: SHL-N-450-BBX
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.
***This Item Comes Without A Hose***
COXREELS® DEF Series are equipped with a stainless steel external full-flow swivel and chemical resistant Viton® seals to provide a safe, reliable Diesel Exhaust Fluid (DEF) dispensing solution. The swivel is easy to access for simple seal maintenance and fast DEF dispenser hose installation. Coxreels® heavy-duty single pedestal (SH Series) is outfitted with Coxreels’ original Super Hub™ dual axle support systems to increase stability and reduce vibration during operation, making these reels the perfect DEF handling solutions for either stationary or rugged mobile applications.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Durable proprietary CPC™ powder coat finish
- CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
- Industry leading 2 year manufacturer's limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- Vehicle Refueling
- Tank Trucks
- Fuel/Lube Trucks
- Fuel Storage & Dispensing Systems
- DEF Storage & Dispensing Systems
- Aircraft Refueling
- Marine/Ship Refueling/Offshore
- Non-corrosive stainless steel 90° NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- Swivel seals: VITON®
- DEF dispensing hose designed to convey the high-purity, aqueous urea solution DEF. Temperature Range: -40°F to +257°F
- Machined from solid brass 90° full-flow NPT swivel inlet for fuel dispensing applications
- Electroless nickel plated steel swivel on 1" models
- Swivel seals: Nitrile
- Fuel dispensing hose designed to convey non-aromatic fuels including diesel, kerosene, fuel oil & heating oil. Temperature Range: -20°F to +190°F
- Sturdy single (SH models) or dual (T Models) pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Each of these reels is built of their standard series with their own unique features & benefits
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position non-sparking lock ratchet mechanism secures hose at desired length
This Item Comes Without a Hose, But Supports The Following Hose Dimensions and Lengths:
Hose Capacity: 50'
I.D. 1/2"
O.D. 7/8"
PSI: 300
