Coxreels SM17-4-125 Compact Swivel Mount Hose Reel

$396.50
$442.25

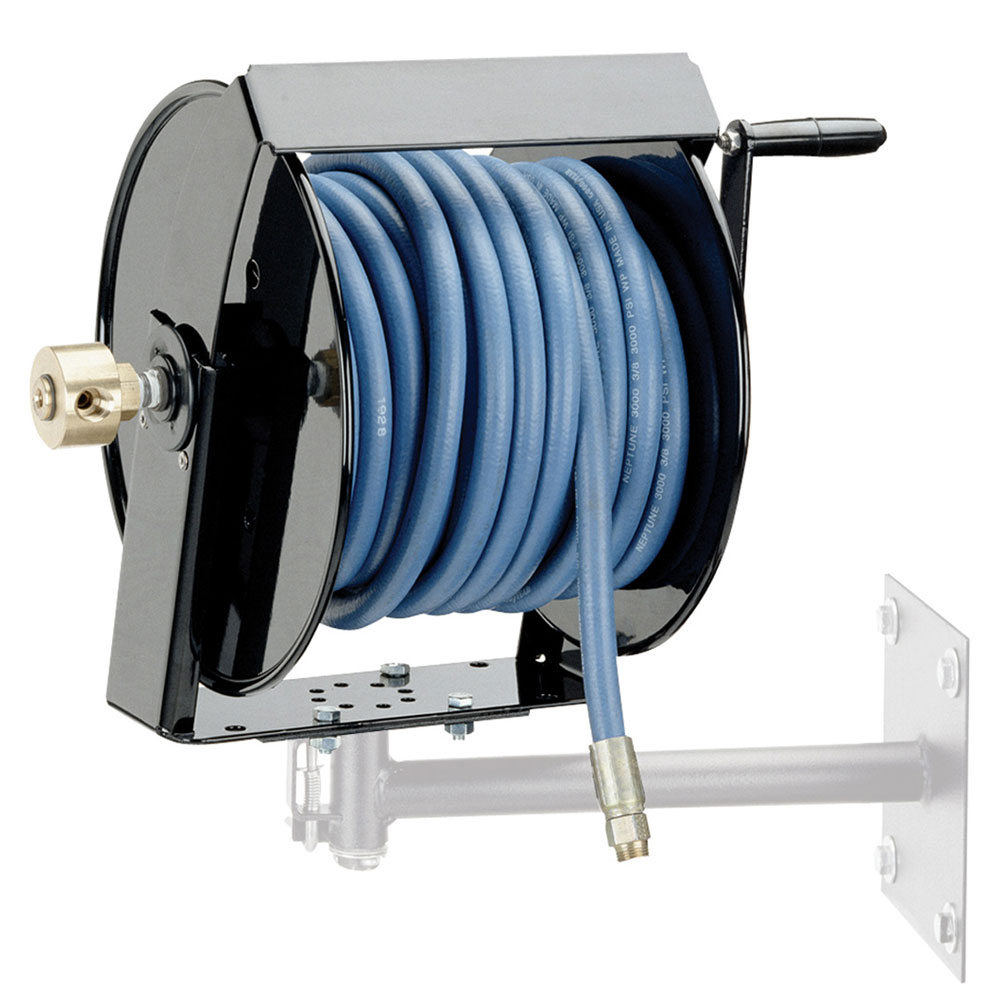

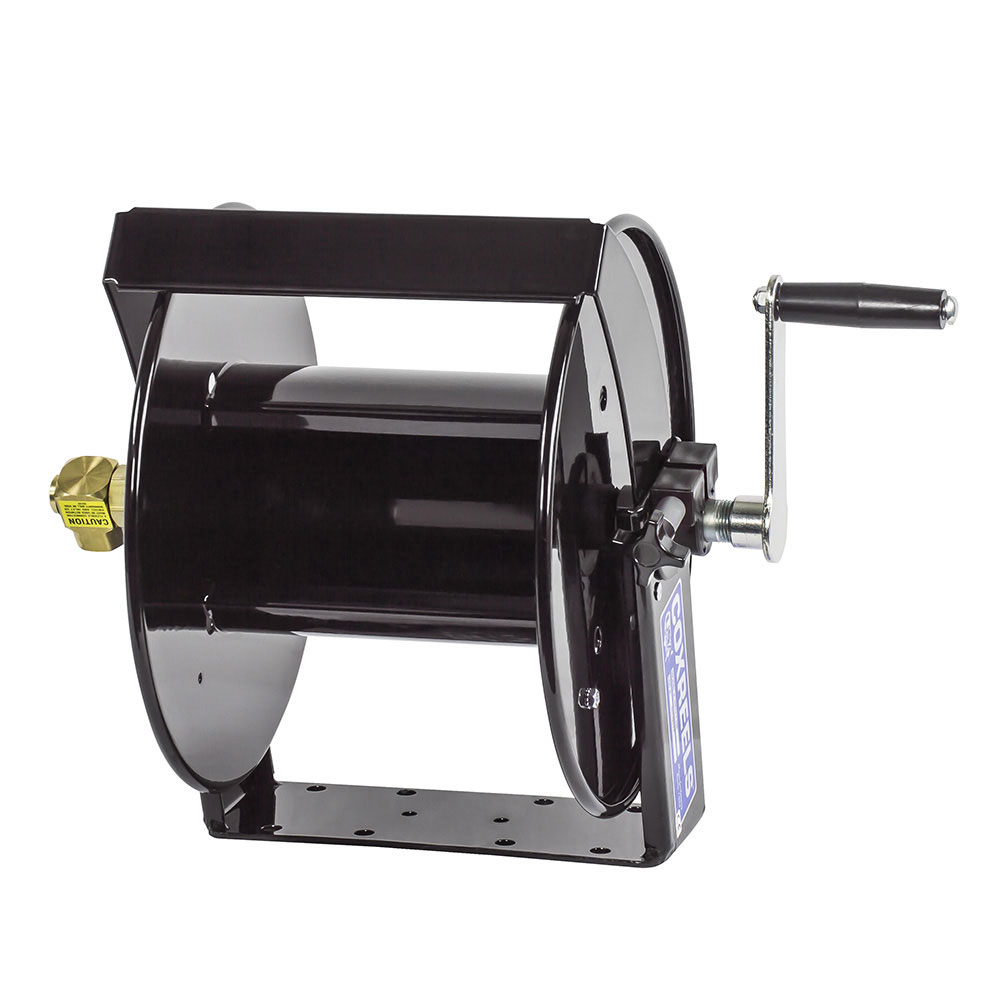

Coxreels SM17-4-125 Compact Swivel Mount Hose Reel

0 reviews / Write a review

$442.25
$396.50

MADE IN THE USA
Model: SM17-4-125
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

SM Series "Swivel Mount" hand crank hose reels swivel on demand in the direction your work takes you and locks in eight different positions as desired. Like the 100 Series, the SM Series is lightweight, compact and versatile with a working pressure up to 4,000 PSI. The "U" shaped base and hose control bar together add strength and rigidity while keeping the hose from slipping off the side discs. All listed models are supplied less hose. Add the SMK-202 wall mount bracket for swiveling mounted positions This reel does not include the swivel mount. Here is the link to the swivel mount

SWIVEL

External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
Up to 4,000 PSI working pressure
Swivel Seals: VITON®

DESIGN & STRUCTURE

Professional grade, swivel mount hand crank reel
Forward-weighted design ensures rotation in direction of use
Solid one piece, heavy gauge steel frame
Unique hose control bar keeps hose from slipping off the disc from any direction
Optional 8-position swivel mount wall mount bracket with lock pin
Adjustable tension brake to prevent "free-wheeling" during operation, transport or storage
Garden hose kit available, see accessories

RETRACTION

Direct hand crank rewind

SIGNATURE FEATURES

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION
