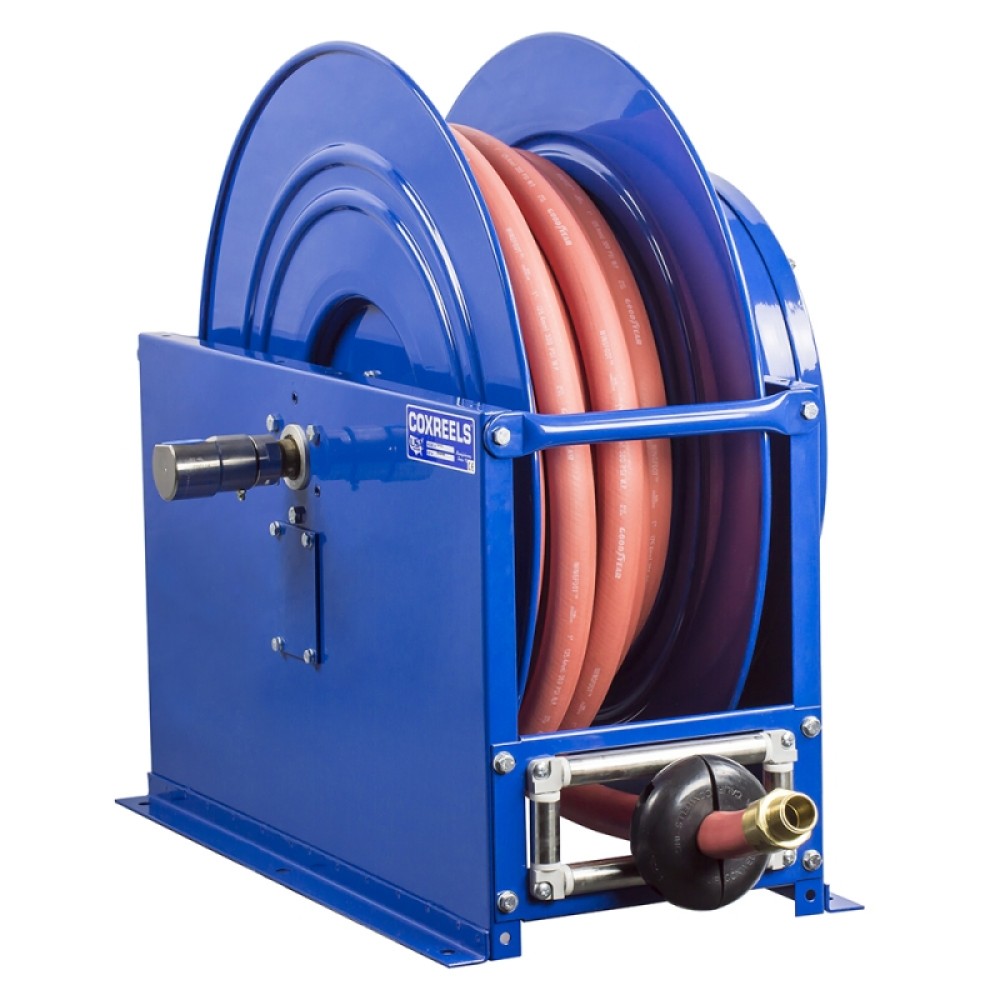

Coxreels SMP-4100 High Capacity Hose Reel

$1,149.42
$1,486.00

Coxreels SMP-4100 High Capacity Hose Reel

0 reviews / Write a review

$1,486.00
$1,149.42

MADE IN THE USA
Model: SMP-4100
Availability: Allow 16 to 18 Business Days

All Coxreels are built to order, please allow 6-8 weeks for delivery.

SP Series "Single Product Delivery" spring driven hose reels are built to handle large hose diameters. Used in applications demanding large volume delivery in low and medium pressures such as fuel and water. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.

SWIVEL

External fluid paths with machined from solid brass 90° full-flow NPT swivel inlets
Swivel Seals: NITRILE (AFLAS on 1" models)
Electroless nickel plated steel swivel on 1" models
Straight in-line aluminum swivel on 1 ½" models

DESIGN & STRUCTURE

Reel features a sturdy box-style frame design
Reel adjusts to wall, floor, vehicle & overhead positions
Heavy gauge 1/4" steel base for maximum strength
Reinforced steel frame provides maximum strength & stability
Long lasting self-lubricated flange bearings for smooth rotation
Heavy duty 1" stainless steel pinch-proof rollers

RETRACTION

Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel pawl spring
Cast iron lock ring with non-sparking bronze pawl
Multi-position lock ratchet mechanism secures hose at desired length

SIGNATURE FEATURES

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

POSSIBLE FIELDS OF APPLICATION
