Coxreels SR19WT-175 Side Mount Welding Reel
-
$1,185.60
- $1,322.40

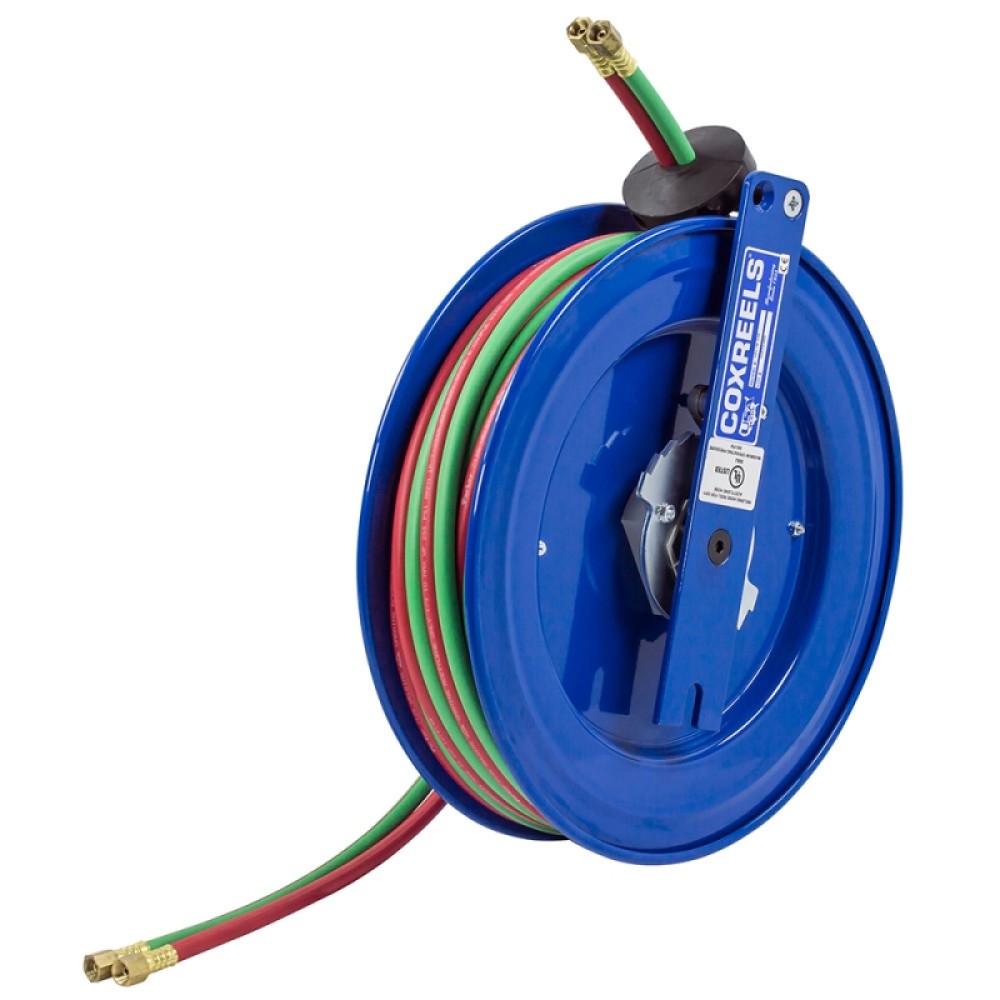

Coxreels SR19WT-175 Side Mount Welding Reel
- $1,322.40
-
$1,185.60
-
MADE IN THE USA
- Model: SR19WT-175
- Availability: Allow 16 to 18 Business Days
All Coxreels are built to order, please allow 6-8 weeks for delivery.
COXREELS® SW Series " Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. SW Series is available for oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.
SWIVEL
SPECIFICATIONS
COXREELS® SW Series " Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. SW Series is available for oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.
SWIVEL
- External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
- Swivel Seals: VITON®
- Designed for Oxy-Acetylene or "T" grade welding hose
- Side mount design for vertical flat surface, cabinet or enclosed space mounts
- 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
- Solid one piece, heavy gauge 1/4" steel arm base for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Hose control bar prevents hose from slipping off the discs
- Enclosed factory tuned and matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position non-sparking lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction
- Durable proprietary CPC™ powder coat finish
- CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
- Industry leading 2 year manufacturer's limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- Air/Water Services
- Pneumatic Tools
- Lubrication
- Chemical Fluid Transfer
- Welding Shops
- General Industrial
- Cabinet Mount
- Service/Mechanic/Utility Vehicles
- Construction Sites
SPECIFICATIONS
- I.D. 1/4"
- Length 75' T-Grade
- PSI 200
- Dual Fuel Gas Hose
- Right Mount
