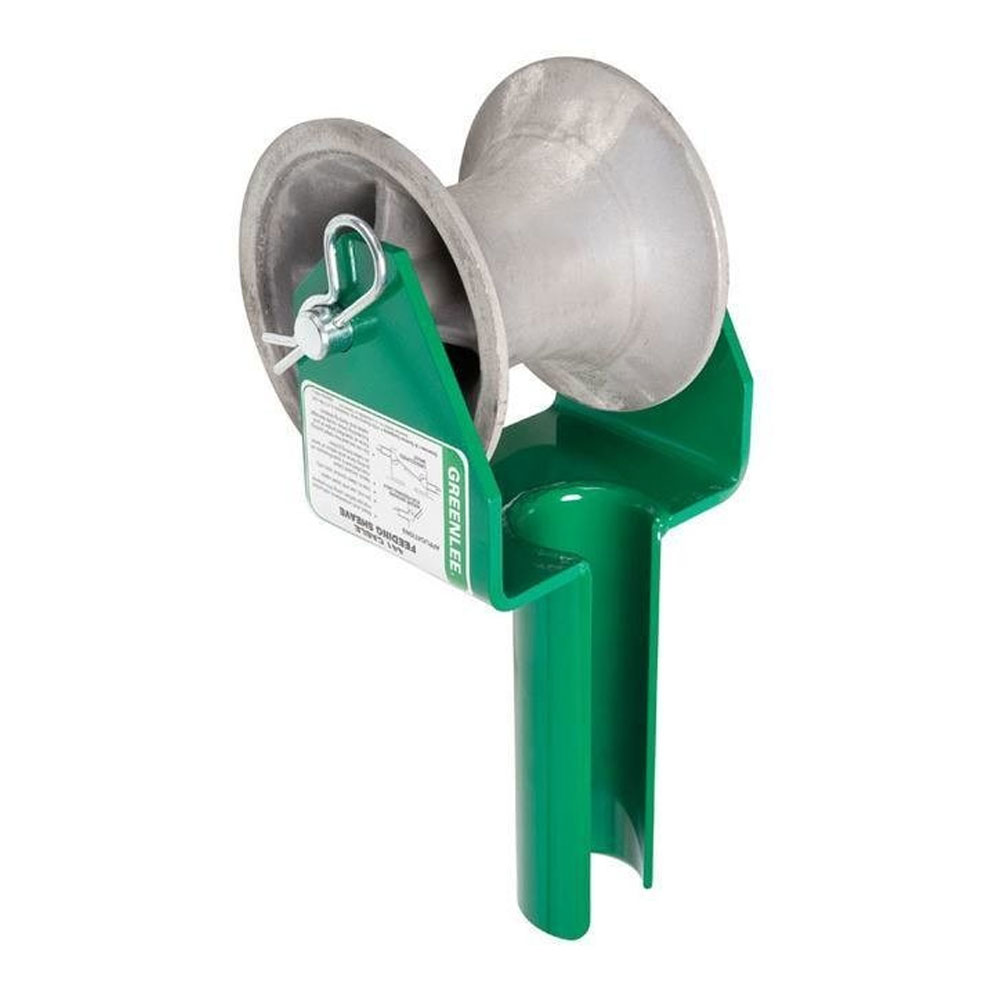

Greenlee 441-2-1/2 Feeding Sheave for 2-1/2" Conduit
- $447.05
-
$371.60
Greenlee 441-2-1/2 Specifications:
- Weight: 11 lbs. (5 kg)
- Capacity (Angle of Pull) -
- 15 °: 1900 lbs. (8.4 kN)
- 30°: 1000 lbs. (4.4 kN)
- 45°: 700 lbs. (3.1 kN)
- 60°: 550 lbs. (2.4 kN)
- 75°: 500 lbs. (2.2 kN)
- 90°: 500 lbs. (2.2 kN)
Greenlee 441-2-1/2 Features:
- Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
- 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
- Split tube for easy removal after cable is installed
