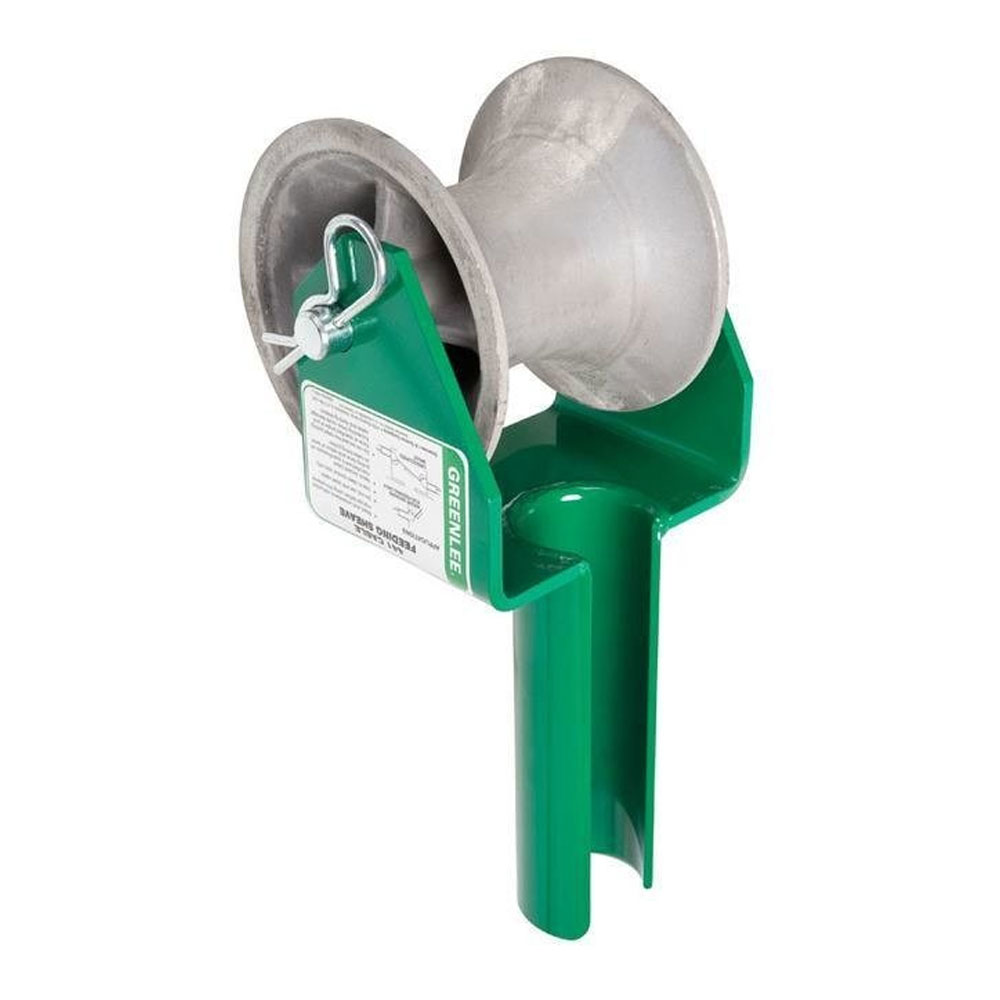

Greenlee 441-3-1/2 Feeding Sheave for 3-1/2" Conduit

  • $460.60

  • $554.10
Greenlee 441-3-1/2 Feeding Sheave for 3-1/2" Conduit

Greenlee 441-3-1/2 Feeding Sheave for 3-1/2" Conduit

  • $554.10
  • $460.60

  • Model: 441-3-1/2
  • Availability: In Stock



Greenlee 441-3-1/2 Specifications:
  • Weight: 17 lbs. (7.7 kg)
  • Capacity (Angle of Pull) -
  • 15 °: 6500 lbs. (28.9 kN)
  • 30°: 5050 lbs. (22.4 kN)
  • 45°: 3550 lbs. (15.7 kN)
  • 60°: 2900 lbs. (12.8 kN)
  • 75°: 2600 lbs. (11.5 kN)
  • 90°: 2500 lbs. (11.1 kN)

Greenlee 441-3-1/2 Features:
  • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
  • 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
  • Split tube for easy removal after cable is installed
