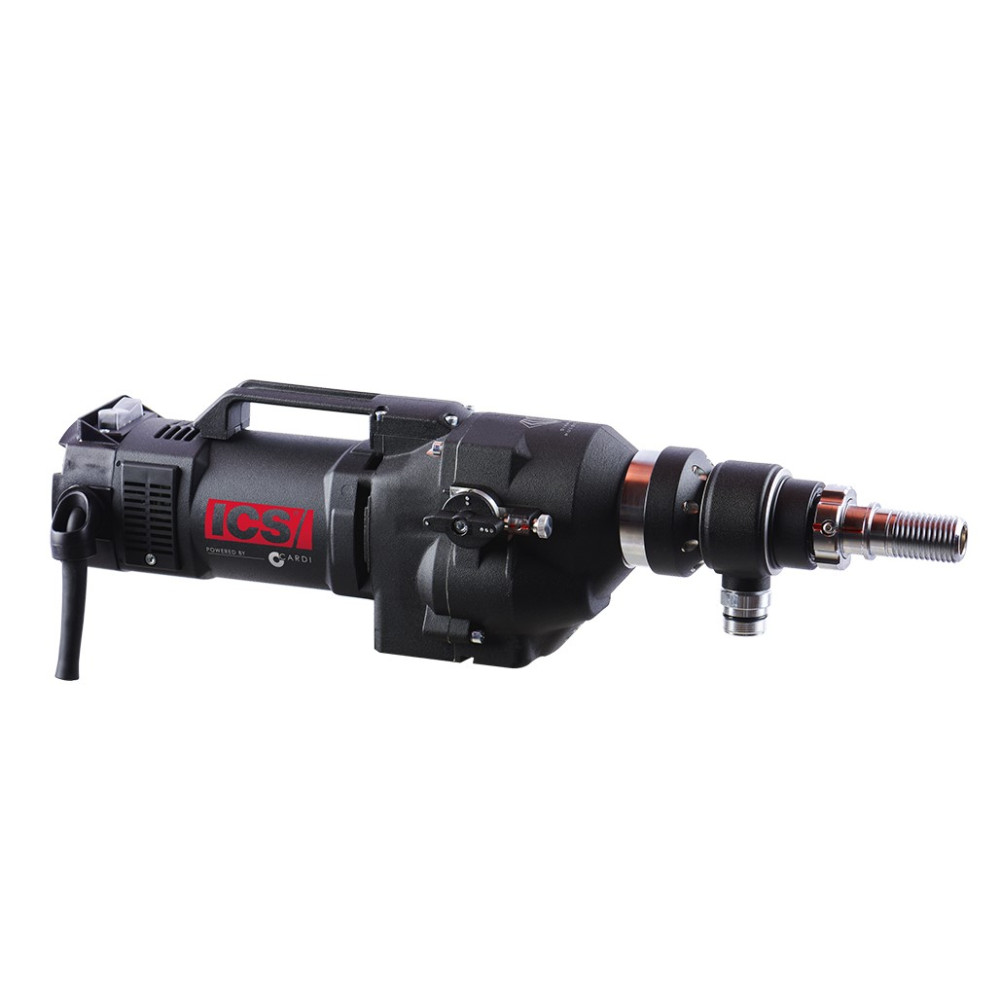

ICS Core Drill Motor DPT3500-SE-38-120V
-
$4,250.00
ICS Core Drill Motor DPT3500-SE-38-120V
-
$4,250.00
-
- Model: DPT3500-SE-38-120V
- Availability: Allow 10 to 14 Business Days
This on-stand drill motor is equipped with the groundbreaking DIAMOND PULSE-TECH core drill technology, developed by CARDI, which provides a super-fast soft hammering effect – 10-29k hits/min on load – and maintains the segment sharped, clear from dust and debris, in all materials and conditions. With tens of thousands of micro-percussions per minute, this cutting-edge innovation offers up to 40* faster drilling on reinforced concrete, delivering unmatched performance for every job. The heavy-duty advanced core drill, equipped with the reliable, robust and powerful CARDI motor delivers maximum power and excels in the most demanding applications.
Experience lightning-fast drilling speeds, reaching up to 16 inch/40 cm, in both dry and wet conditions. Powered by the most powerful single-phase electric motors, equipped with 3 gears, and delivering thousands of heavy-duty micro-percussions per minute.
Choose between 2 advanced drilling options:
- Advanced dry drilling: for a clean and faster drilling, in any environment.
- Advanced wet drilling: for a faster drilling.
- All components of the DIAMOND PULSE-TECH system work in synergy to enable advanced hybrid drilling.
- DPT technology with micro-percussion
- DPT anti-vibration technology
- The DPT3500-SE-38-120V features:
- On Stand Core Drill Motor
- Advanced Hybrid Wet/Dry
- 3 gears
- With DPT micro-percussion
- Compatible Stand:
- DPT-C520-ICS
| Hand Held | Yes |
|---|---|
| On Stand | Yes |
| Drilling Diameter | 1" – 16" / 2.5 – 40cm |
| Input Power (max/rated) | 4600 / 3420 W |
| Input Current (max/rated) | 22 / 18 A |
| Motor type | Electric 1P | 115-120V 50-60 Hz |
| Gears | 3.0 |
| Product Weight | 31.1 lbs / 15 kg |
| Dimensions | 25.25" x 6.25" x 6.25" / 64 cm x 16 cm x 16 cm |
| Rated No-load rpm | 350 / 800 / 1470 rpm |
| Rated Load rpm | 230 / 520 / 965 rpm |
| Core Bit Connection | 1.25" UNC |
| Noise Level (Pressure, LpA) | 102.6 [dB (A)] |
| Noise Level (Power, LWA) | 113.6 [dB (A)] |
| Wet Cut | Yes |
| Dry Cut | Yes |
| Micro-Percussion Technology | Yes |
| Cooling System | Air Cooled |
