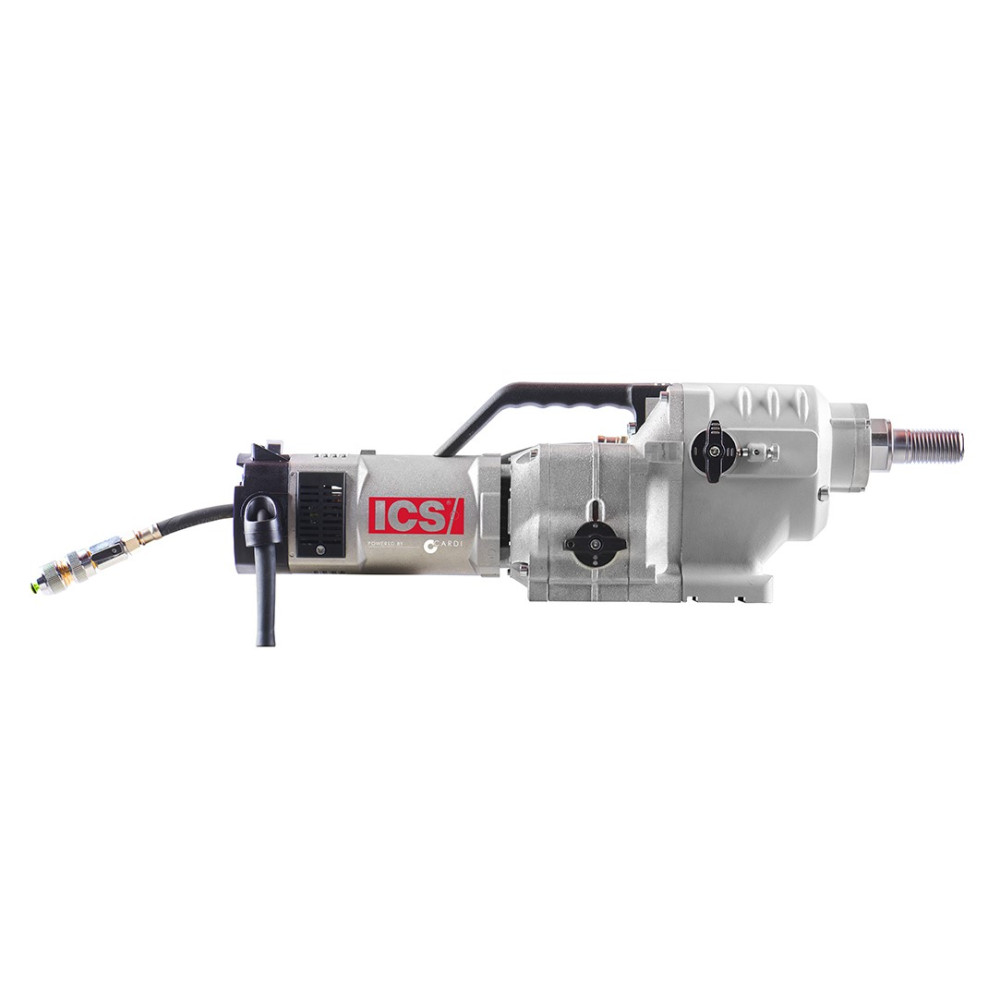

ICS Core Drill Motor Vortex-625-120V
-
$5,299.00
ICS Core Drill Motor Vortex-625-120V
-
$5,299.00
-
- Model: Vortex-625-120V
- Availability: Allow 10 to 14 Business Days
Robust on-stand core drill motor engineered for a variety of applications. The Vortex-625120V effortlessly tackles everything from HVAC installations to drilling for networks, anchors, chimneys, guardrails, fences, and more. Ultra heavy duty, immensely powerful, for very large drillings up to 24 inch/60 cm.
Vortex-625-120V
- On-Stand Drill Motor
- Wet Cutting
- 6 gears
- Compatible Stands
- C-520-ICS
- X2R-ICS
| Hand Held | No |
|---|---|
| On Stand | Yes |
| Drilling Diameter | 1" – 24" / 2.5 – 60cm |
| Input Power (max/rated) | 3350 / 2820 W |
| Input Current (max/rated) | 31 /25 A |
| Motor type | Electric 1P | 115-120V 50-60 Hz |
| Gears | 6.0 |
| Product Weight | 31.4 lbs / 14.2 kg |
| Dimensions | 21.25" x 6.25" x 6.75" / 55 cm x 17 cm x 19 cm |
| Rated No-load rpm | 210 / 340 / 480 / 730 / 1200 / 1670 rpm |
| Rated Load rpm | 135 / 220 / 315 / 480 / 780 / 1100 rpm |
| Core Bit Connection | 1.25" UNC |
| Noise Level (Pressure, LpA) | 91 [dB (A)] |
| Noise Level (Power, LWA) | 104 [dB (A)] |
| Wet Cut | Yes |
| Dry Cut | No |
| Micro-Percussion Technology | No |
| Cooling System | Air Cooled |
