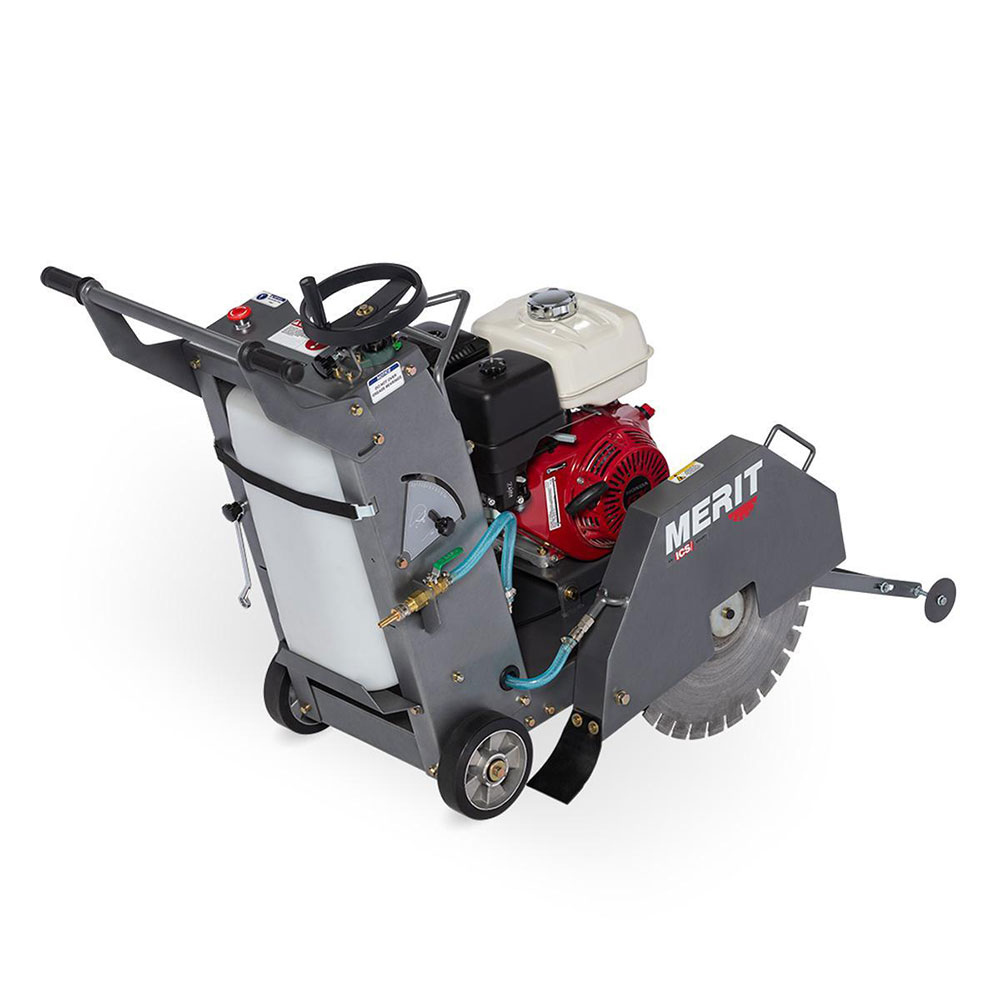

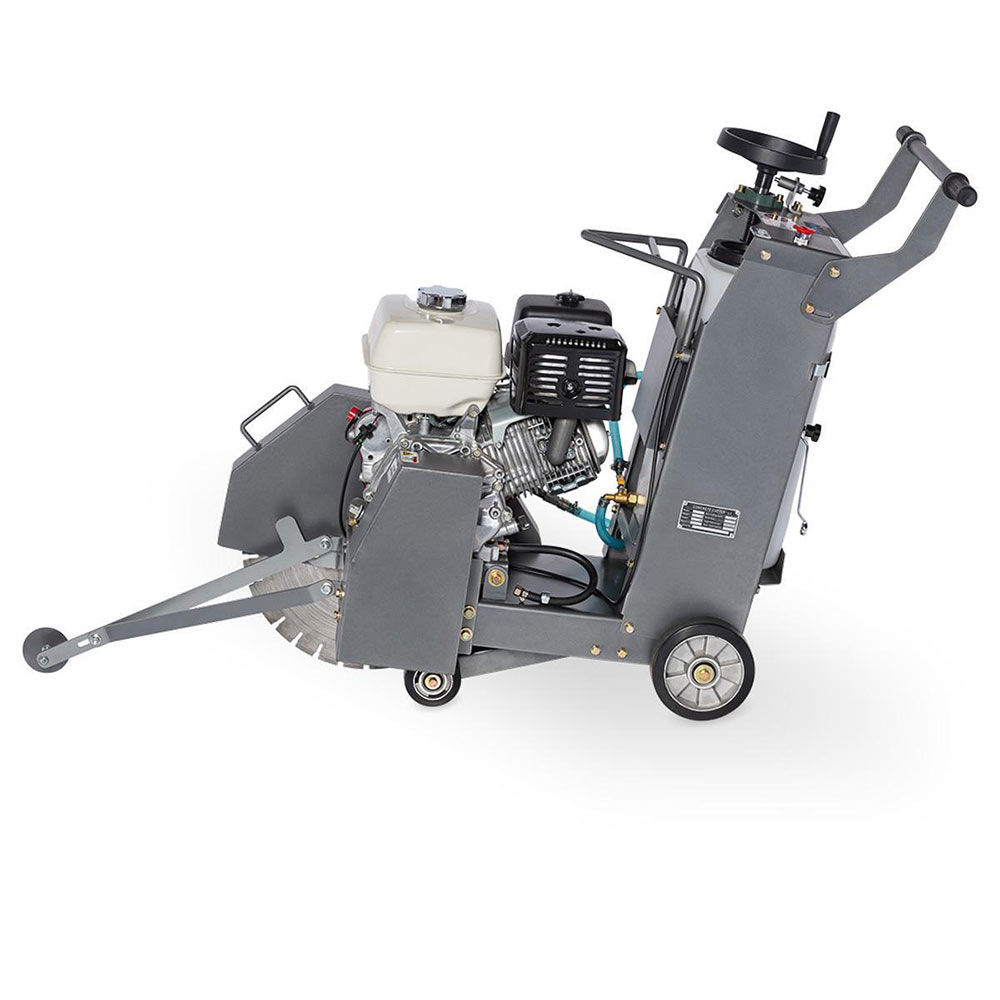

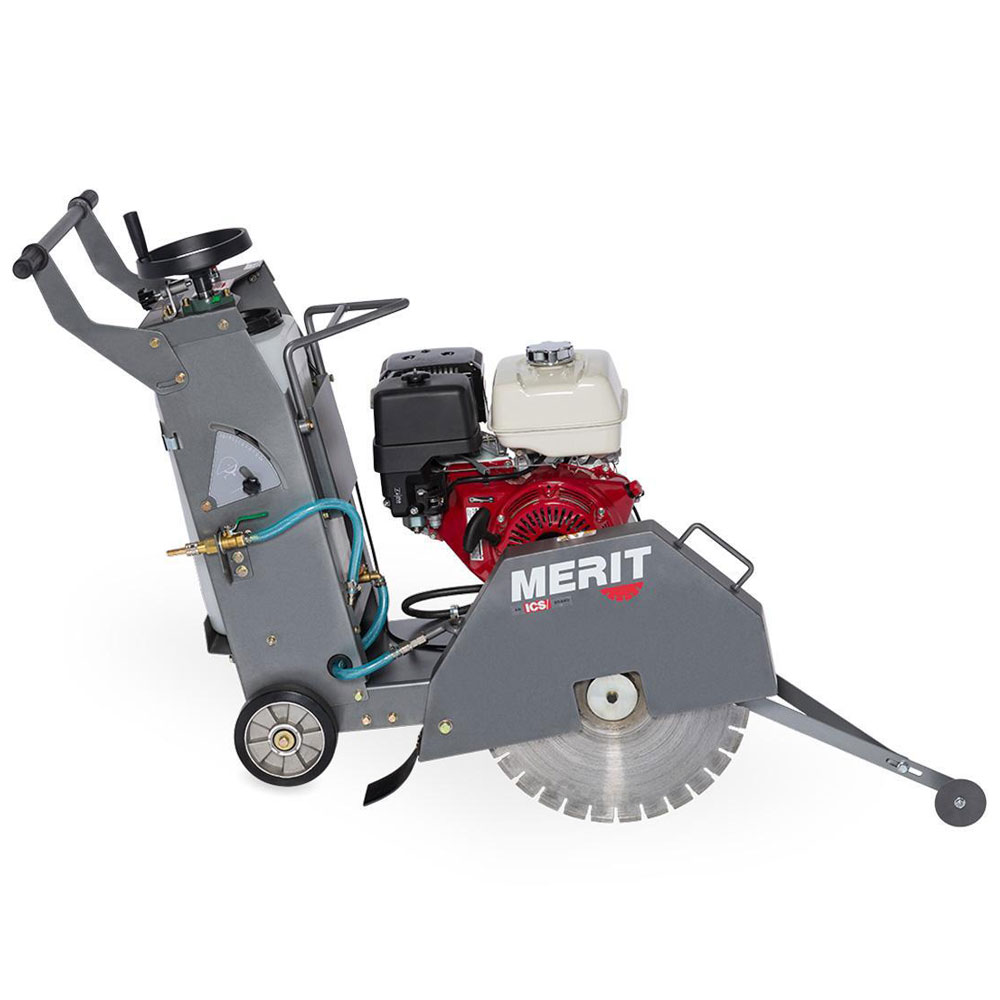

Merit M130-13G Concrete Flat Saw
-
$2,725.00
**Please Allow 3-6 weeks for Delivery**
For questions or help with saw options please call our ICS/Merit Regional Sales Manager at 720-762-8107
For the contractor that needs a compact powerful flat saw for small to medium size jobs in concrete or asphalt. The Merit M130 is a concrete cutting flat saw that is the ideal balance of power, performance, compact size and ease of use.
- 13 HP Honda GX390 Gas Engine
- Lightweight compact design for easy transportation and cutting in tight spaces
- Dual water source
- Large integrated water tank
- External water connection for ability to connect to hose
- Up to 20" blade capacity with 8" maximum cutting depth
- Depth indicator for precision cutting
- 20" Blade Guard Included

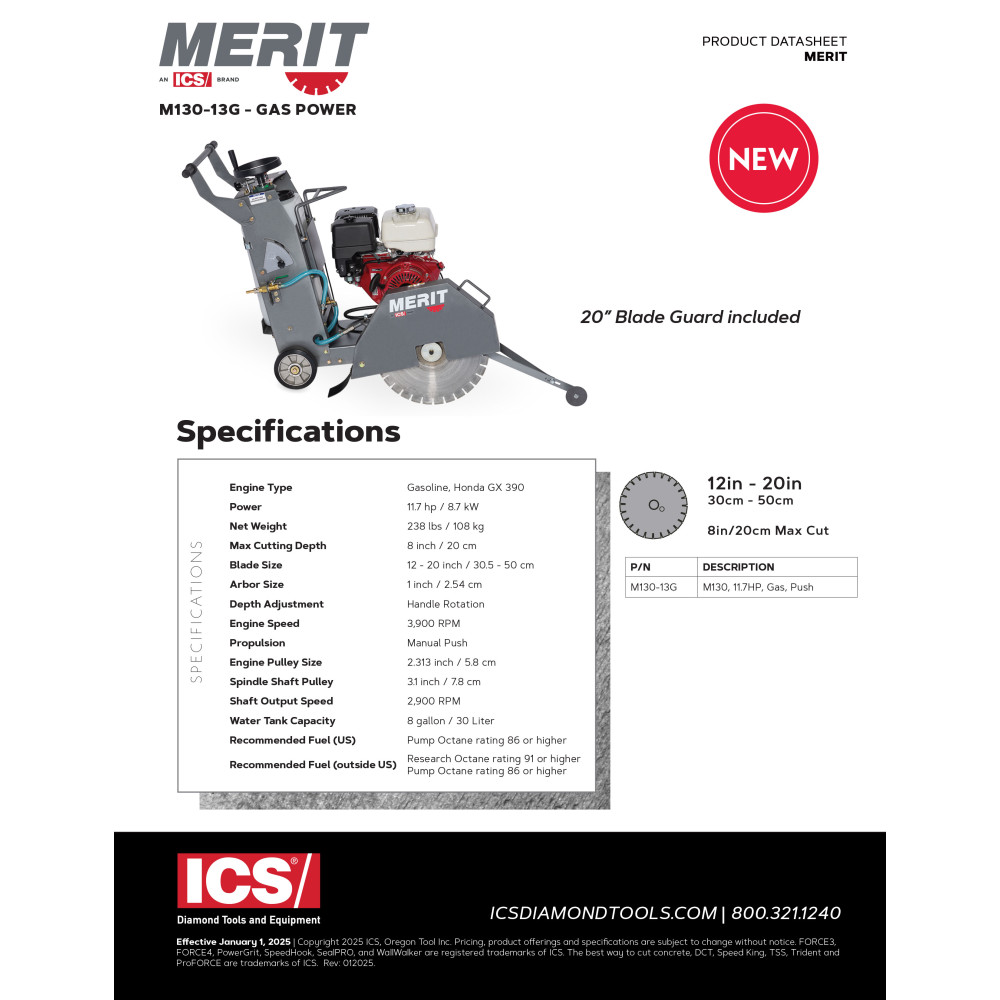

Specifications
Engine Type: Gasoline, Honda GX 390
Power: 11.7 hp / 8.7 kW
Net Weight: 238 lbs / 108 kg
Max Cutting Depth: 8 inch / 20 cm
Blade Size: 12 - 20 inch / 30.5 - 50 cm
Arbor Size: 1 inch / 2.54 cm
Depth Adjustment: Handle Rotation
Engine Speed: 3,900 RPM
Propulsion: Manual Push
Engine Pulley Size: 2.313 inch / 5.8 cm
Spindle Shaft Pulley: 3.1 inch / 7.8 cm
Shaft Output Speed: 2,900 RPM
Water Tank Capacity: 8 gallon / 30 Liter
Recommended Fuel (US): Pump Octane rating 86 or higher
Recommended Fuel (outside US): Research Octane rating 91 or higher Pump Octane rating 86 or higher
